GX100NX 2/GX100NX 2 HP
1M Inmarsat GX Maritime Terminal for Fleet Xpress
Intellian GX100NX 2 is a 2.5GHz Ka- Wideband ready Global Xpress terminal with a 105 cm diameter reflector. The GX100NX 2 is designed with a lighter-weight antenna enabling easy installation. RF performance of the GX100NX 2 is class leading, ensuring the best possible throughput and performance. The GX100NX 2 has a transceiver system and GX100NX features a BUC. The GX100NX 2 HP incorporates an upgraded 9W high-powered transceiver.
The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it simple and easy to install in an FX rack. The GX100NX 2’s new operation platform provides the efficiency of configuration and activation with its smart operational software AptusNX.

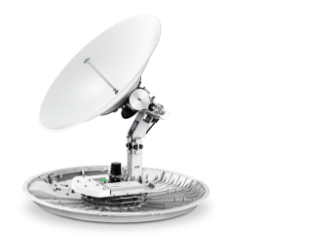

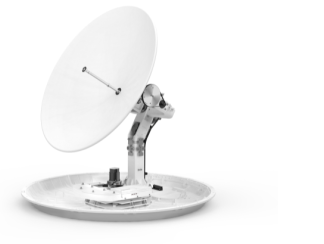

* Image used is GX100NX 2
- GX100NX 2/GX100NX 2 HP
- Key Features
- Compare Products
- Downloads
- Related Products
- Where to Buy
2.5GHz wideband Ka ready
The GX100NX 2 is prepared for the future commercial 2.5GHz Ka-wideband support with a Frequency-Tuned Radome & Reflector.
Standardized modular components across NX Series
Modular components are compatible across Intellian’s NX antenna series.
New All in One below deck terminal
The all-new GX BDT integrates ACU, GX modem, power supply, 4-port switch and GX Mediator.
AptusNX
Accurate and enhanced self diagnosis platform, automatic configuration (GPS, Heading, Bow offset) and cable compensation, with a step by step installation wizard.
2.5GHz Wideband Ka Covering the Full Ka-band
- Ready for the future GX 2.5GHz Ka-wideband
- Frequency tuned radome & reflector
- Able to be easily converted for the GX next generation of GX-R2 satellites
Fewer Parts and More Common Spare Parts
- Standardized modular components across the NX series
- Main control unit, sensor unit, power switch unit, motor etc. are compatible with NX series
- Approximate reduction of 40% of common parts saves on operational costs and improves spares availability
Category
GX100NX
GX100NX 2
GX100NX
GX100NX 2
Radome Dimension (HxD)
145.8x137.9 cm / 57.4x54.3 inch
145.8x137.9 cm / 57.4x54.3 inch
145.8x137.9 cm / 57.4x54.3 inch
145.8x137.9 cm / 57.4x54.3 inch
Reflector Diameter
105 cm / 41.3 inch
105 cm / 41.3 inch
105 cm / 41.3 inch
105 cm / 41.3 inch
Antenna Weight
113 kg / 249.1 lbs
110 kg / 242.5 lbs
113 kg / 249.1 lbs
110 kg / 242.5 lbs
TX Frequency
29.0~30.0 GHz Ka-band
27.5~30.0 GHz Ka-band
29.0~30.0 GHz Ka-band
27.5~30.0 GHz Ka-band
RX Frequency
19.2~20.2 GHz Ka-band
17.7~20.2 GHz Ka-band
19.2~20.2 GHz Ka-band
17.7~20.2 GHz Ka-band
TX Gain
47.7 dBi @ 29.5 GHz (excl. radome)
48.0 dBi @ 29.0 GHz (excl. radome)
47.7 dBi @ 29.5 GHz (excl. radome)
48.0 dBi @ 29.0 GHz (excl. radome)
RX Gain
44 dBi @ 19.7 GHz (excl. radome)
44.3 dBi @ 19.0 GHz (excl. radome)
44 dBi @ 19.7 GHz (excl. radome)
44.3 dBi @ 19.0 GHz (excl. radome)
G/T
20.1 dB/K (min.)
19.6 dB/K (min.)
20.1 dB/K (min.)
19.6 dB/K (min.)
