FAQ

I am dealer and need an Engineer to attend the vessel for a repair, how do I arrange this?

Contact support@intelliantech.com providing them with the serial number of the antenna so they can generate a case for you. Provide them with Log files to analyse and advise if it can be something that can be fixed remotely. If there is a hardware error, the support desk personnel will advise and can hand over to the coordination team to have an engineer attend the vessel for you.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Are Intellian wooden shipping crates treated (fumigated) for International shipping?

All systems that are packaged in wooden crates are treated in compliance with the required shipping regulations as applicable. Treatment certificates can obtained from your account team or by contacting us at sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

I have an error on my VSAT antenna. What should I do?

Download the last 5 days of data to the log file and contact support@intelliantech.com . Our support desk will be able to give you an analysis and advise you on how to resolve the issue.

Categories
Technical Support, VSAT
05 October 2020
FAQ

Can we buy direct from Intellian?

Intellian does not supply products direct, however we have a comprehensive Global partner/reseller network. Please click on "where to buy" link to locate your closest Intellian reseller or contact our sales team at sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

Where are Intellian Antenna Systems stocked?

The majority of TVRO, FBB and VSAT systems are stocked at the 3 Global Logistics centres; Seoul-Korea, Rotterdam-NL, Irvine-California. Custom products are typically shipped direct from our factory facility in Korea. For specific stock information please contact your account team or contact us at sales@intelliantech.com

Categories
Sales, Others, VSAT, TVRO
05 October 2020
FAQ

No picture is showing on the TV set. What should I do?

No picture is showing on TV set There are a number of common issues that could cause you to have no picture on the TV set.

Improper LNB Skew angle: A proper LNB skew angle is needed when antenna targets a linear polarization satellite. The optimal skew angle can be found by rotating LNB at tracking mode by checking signal levels at Antenna Control Unit (ACU) or PC program. The satellite receiver has the ability to switch satellites automatically using a DiSEqC signal. Ensure the satellite configuration on your IRD must match the satellite setting on the Intellian system.
Out of satellite coverage zone: Intellian system will provide excellent reception within the antenna coverage area for your satellite television service. However, signal quality may degrade as you approach the edges of coverage zone.
Incorrect or loose RD connections: As part of the regular maintenance Intellian recommends all connections should be checked to ensure that they have not become loose. A loose RF connector can reduce signal quality. For Intellian® i3 and i4 , you need always connect your RF1 cable to your Antenna Control Unit (ACU). Please refer to the "Connecting the Antenna RF Signal Cable to the IRD" section of your owner’s manual for more information.
Type of multiswitch used: An active multiswitch must always be used to connect the Intellian system to multiple IRDs. Refer to your owner’s manual for directions on proper multiswitch /multiple IRD cabling.
IRD wiring: Refer to the "Connecting the Antenna RF Cable to the IRD" section in your Intellian owner’s manual and your IRD user manual to confirm that the IRD is properly connected to the antenna unit and the television.
IRD faulty: In the case of a faulty IRD, refer to your IRD user manual for service, replacement, and warranty information.
If you are still having difficulties or have any questions, please contact the Intellian technical support team by submitting a question using via email at support@intelliantech.com.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Intermittent TV picture for short intervals. What should I do?

There are a number of common issues that may cause you to have an intermittent picture for short intervals.
Improper LNB Skew angle: This only applies in regions that use Linear signals such as Europe and South America, not applicable in US and Canada. A proper LNB skew angle is needed when antenna targets a linear polarization satellite. The optimal skew angle can be found by rotating LNB at tracking mode by checking signal levels at Antenna Control Unit (ACU) or PC program.
Satellite signal blocked: Satellite signals can be blocked or degraded by buildings, other vessels or equipment on vessel itself. Check to see if the antenna has a clear view of the sky. Refer to your owner’s manual, to make certain that the Intellian unit is in the optimal location.
Out of satellite coverage zone: Intellian systems provide excellent reception within the antenna coverage area for your satellite television service. However, signal quality may degrade as you approach the edges of coverage zone.
Incorrect or loose RF connections: As a part of the regular maintenance Intellian recommends all connections should be checked to ensure that they have not become loose. A loose RF connector can reduce signal quality. For Intellian i-Series, you need always connect your RF1 cable to your Antenna Control Unit (ACU). Please refer to the "Connecting the Antenna RF Signal Cable to the IRD" section of your owner’s manual for more information.
Type of multiswitch used: An active multiswitch must always be used to connect the Intellian system to multiple IRDs. Refer to your owner’s manual for directions on proper multiswitch/multiple IRD cabling.
IRD wiring: Refer to the "Connecting the Antenna RF Cable to the IRD" section in your Intellian owner’s manual and your IRD user manual to confirm that the IRD is properly connected to the antenna unit and the television.
IRD faulty: In the case of a faulty IRD, refer to your IRD user manual for service, replacement, and warranty information.

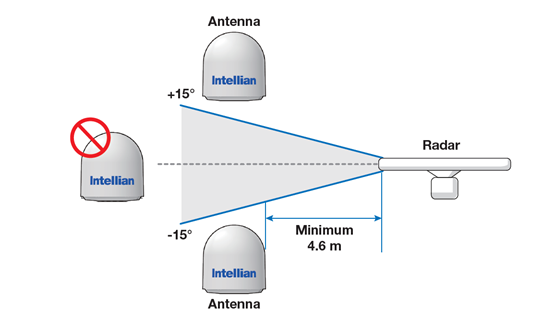

Radar Interference: Intellian recommends that you do not mount the antenna on the same level as the radar, because the radar’s energy might overload the antenna's front-end circuits. Refer to the owner’s manual to make sure that your antenna unit is in the optimal location with regard to your radar unit.

If you are still having difficulties or have any questions, please contact the Intellian technical support team by submitting a question using via email at support@intelliantech.com.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I locate the product shipping costs, shipping location, weights and dimensions?

Intellian distribute products from multiple logistics centers. Weights and dimensions for each product can be confirmed by your Intellian key account manager. If you are unsure who your key account manager is, please email sales@intelliantech.com with your request.

Categories
Sales, Others
05 October 2020
FAQ

The Intellian system will not find or lock on to the satellite. What should I do?

There are a number of possibilities that could explain why the system will not find the satellite. Satellite signal blocked: Satellite signals can be blocked or degraded by buildings, other vessels or equipment on vessel itself. Check if the antenna has a clear view of the sky. Refer to your owner’s manual, to make certain that the Intellian unit is in the optimal location.

Outside of satellite coverage zone: Intellian systems provide excellent reception within the antenna coverage area for your satellite television service. However, the strength of satellite signal may be degraded as you approach the edges of coverage zone. Radar interference: Intellian recommends that you do not mount the antenna on the same level as the radar. Radio waves emitted from radar might interfere with Intellian.

Incorrect or loose RF connections: As part of the regular maintenance Intellian recommends all connections should be checked to ensure that they have not become loose. A loose RF connector can reduce signal quality. For Intellian i-Series, you need always connect your RF1 cable to your Antenna Control Unit (ACU). Please refer to the "Connecting the Antenna RF Signal Cable to the IRD" section of your owner’s manual for more information.

Radome off: Intellian recommends that you should keep the radome on during the satellite search or tracking mode. Direct sunlight or other weather factors may interfere with the sub-reflector’s optical sensors and it might cause the antenna tracking function to fail.

Incorrect satellite information: Incorrect satellite information (i.e. transponder frequency, symbol rate, NID or decode method) will result the antenna tracking function failed. Satellite information may be changed from time to time due to the satellite TV program or program provider change. You can contact Intellian authorized dealers directly to have the latest satellite information.

Multiswitch interference: An active multiswitch must always be used to connect the Intellian system to multiple satellite receivers (IRD). Insufficient voltage: Intellian recommends that the RF cable between antenna and Antenna Control Unit (ACU) should not be longer than 30-meter. Over 30-meter will result in the voltage drop and it might cause significant loss of signal gain. Please consult Intellian authorized dealers for technical support. In order to have your antenna operate normally, the output voltage from ACU to antenna should be at least 24V for Intellian i6 and 27V for Intellian i3 and i4.

Improper LNB Skew angle: A proper LNB skew angle is needed when an antenna locks on a linear polarization satellite. The optimal skew angle can be found by rotating the LNB while in tracking mode by checking signal levels in the Antenna Control Unit (ACU) or PC program. LNB failure: If you have an defective LNB, it might need to be replaced. Contact your local dealer, national distribution or Intellian product support for further assistance.

If you are still having difficulties or have any questions, please contact the Intellian technical support team by submitting a question via email at support@intelliantech.com

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Does Intellian have the spares I need in stock?

Intellian stocks spare parts at all the Intellian Global Logistics and support centers around the world. Contact your account manager or sales@intelliantech.com and they will be able to advise on cost, availability and lead time for delivery.

Categories
Sales, Spares Accessories
05 October 2020
FAQ

Does Intellian provide airtime?

Intellian does not provide airtime. Intellian communication systems are used by many airtime providers who are able to offer airtime services. Please contact your local account team or contact us at sales@intelliantech.com for contact information.

Categories
Sales, Others
05 October 2020
FAQ

Is HD available on all Intellian series?

Intellian Satellite TV Antenna Systems are capable of supporting High Definition programming when available on Ku-band. Most of the Sat TV companies transmit HD programing on Ku-band so the Intellian i-Series can support this when using a HD TV with an HD subscription. DIRECTV however transmit HD signal on Ka-band and so to receive HD DIRECTV the s-Series must be used.
If you are still having difficulties or have any questions, please contact the Intellian technical support team at support@intelliantech.com .

Categories
Technical Support, TVRO
05 October 2020
FAQ

Does Intellian offer product demos and where can I find details?

Please contact your regional sales team for a product evaluation or demos. Contact information is available in the About Us section, or you can email sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

I'm getting a "channel not available" message on my TV

There are a number of common issues that can cause you to get a “channel not available” message on your TV when using a satellite receiver.
Antenna tracking wrong satellite: If you select a channel on the receiver, but the wrong programming or no programming appears on the TV, that channel might be carried on a different satellite from the one the antenna is currently tracking. Try switching to another satellite.
Receiver not activated for DIRECTV HDTV service: If you are unable to receive high-definition channels on your HD receiver, your receiver may not be activated for HDTV service. High-definition channels are not included with the basic DIRECTV package; you need to request that these special channels be added to your programming package. Premium HD channels, such as HBO HD, must be ordered separately.
Program guide not fully loaded at startup: Whenever you reboot the receiver (turn the power off or disconnect the power), the receiver needs to download the complete Program Guide from the 101° satellite. Therefore, be sure the antenna is tracking the 101° satellite whenever you reboot the receiver. Please be patient during this process it may take around 20 minutes for the receiver to load the entire Program Guide, which lists channels available on every DIRECTV® satellite. You cannot select a channel until it has been loaded in the Program Guide.
If you are still having difficulties or have any questions, please contact the Intellian technical support team at support@intelliantech.com .

Categories
Technical Support, TVRO
05 October 2020
FAQ

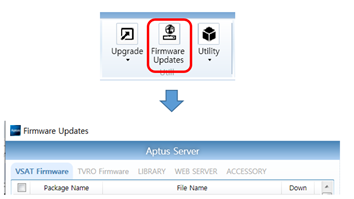

Where can I download the Aptus PC Software?

If you are a dealer and have access to the Intellian Partner portal, it can be downloaded from there.


Alternatively, you can contact support@intelliantech.com and they will be able to provide you with a link to download the latest version.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

I have a t-Series antenna, I will be sailing from America to Europe, will I need to make any changes to the system?

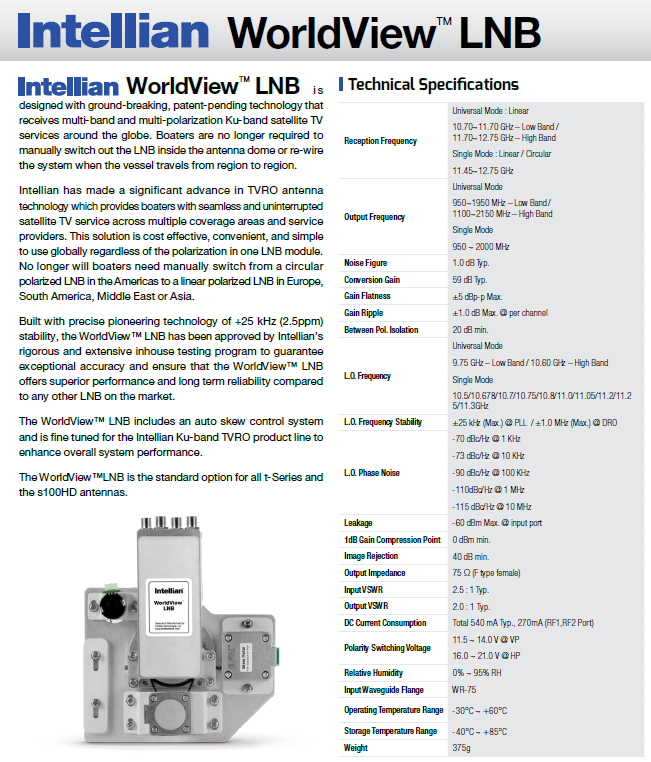

The t-Series antennas are Worldview capable, and have the Intellian WorldView LNB installed. This LNB operates in all regions for reception of Satellite TV signals. No changes will be required to be made on the hardware but you will need to reload the region file on the ACU for when you are in coverage of the European satellite. Once it has been reloaded, you can set the sat pair option to display the correct satellite. Steps can be found in the manual. If you have any problems, you can also contact support@intelliantech.com to assist you.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I locate my nearest dealer?

There are a number of ways to locate your nearest dealer, click on the "where to buy" link on our homepage and select your region to search for a local dealer, or you can contact the Intellian sales team at sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

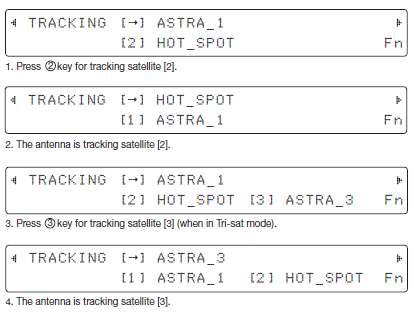

The antenna is not switching channels or satellites when using Dish or Bell TV with a MIM?

There are a number of common issues that could cause your antenna not to switch channels or satellites while operating with a MIM.
Incorrect satellite configurations: The satellite receiver has the ability to switch satellites automatically using a DiSEqC signal. Please ensure the satellite configuration on your IRD matches with the satellite setting on the Intellian system. Also ensure the MIM has power and the correct receiver is set as the Master receiver. This is displayed on the ACU and also on the MIM with indicator LEDs.
Incorrect or loose RD connections: As a part of the regular maintenance, Intellian recommends all connections should be checked out to ensure that all connections are tightly secured. A loose RF connection might drop signal quality significantly. For Intellian i-series, ensure to connect RF1 cable to your Antenna Control Unit (ACU). Please refer to the "Connecting the Antenna RF Signal Cable to the IRD" section of your owner’s manual for more information
Satellite signal blocked: Satellite signals can be blocked or degraded by buildings, other vessels or equipment on vessel itself. Check to see if the antenna has a clear view of the sky. Refer to your owner’s manual, to make certain that the Intellian unit is in the optimal location. Out of satellite coverage zone: Intellian systems provide excellent reception within the antenna coverage area for your satellite television service. However, signal quality may degrade as you approach the edges of coverage zone.
If you are still having difficulties or have any questions, please contact the Intellian technical support team by submitting a question using email at support@intelliantech.com

Categories
Technical Support, TVRO
05 October 2020
FAQ

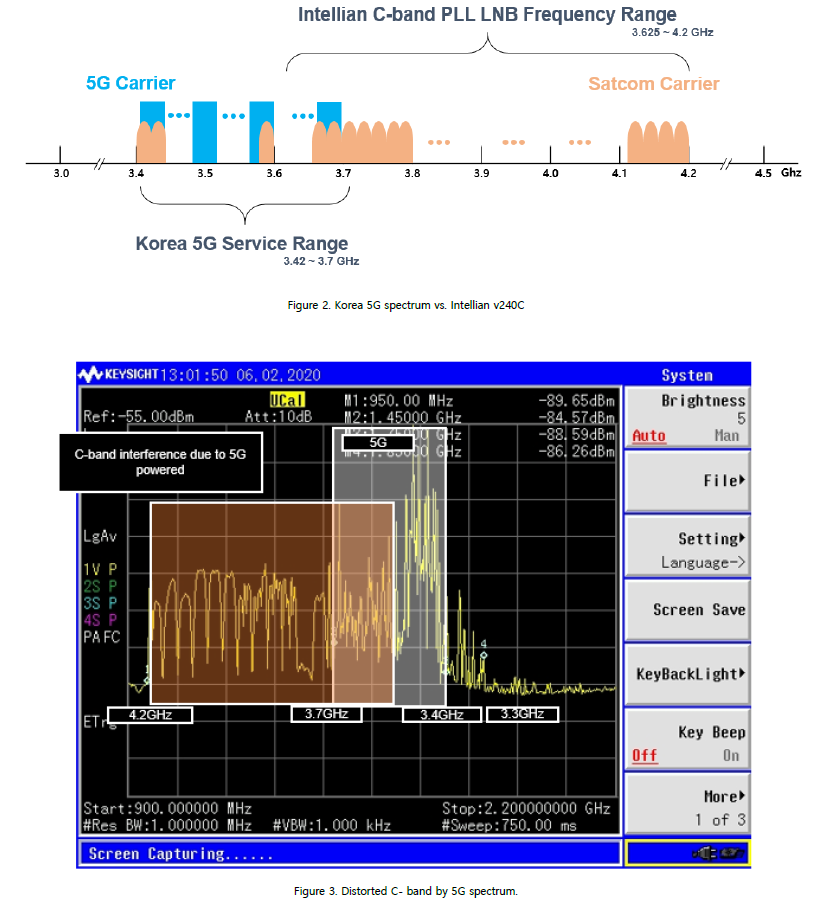

Does Intellian offer C Band Products?

Yes, Intellian has a 2.4m product portfolio of C Band products for both TVRO and VSAT. Intellian also offers a Multiband 2.4m systems that operate in either C, Ku- or Ka- band. For product information please contact your local account team or sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

I have a technical problem with my antenna. Who do I contact?

If you have a technical issue with your antenna we recommend that you first contact the dealer or installer who supplied the equipment. You may also check the knowledge base to see if there is a solution already posted. Alternatively you can contact your local Intellian support center via email at support@intelliantech.com or direct by telephone using the numbers listed in the Contact Us page

Categories
Technical Support, Others
05 October 2020
FAQ

I would like a VSAT & TVRO solution for my yacht, can Intellian assist by quoting me for the antennas?

Contact sales@intelliantech.com, they will be able to advise on what system would be beneficial for you, and provide information on a local dealer who will be able to provide you with a quotation.

Categories
Sales, Others
05 October 2020
FAQ

Where can I download the manual and system diagram for an antenna?

Satellite TV systems manual and system diagrams are made available on the product pages. For VSAT antennas these can be downloaded from the Intellian Partner Portal or you can contact support@intelliantech.com and they will be able to provide you with the manual and system diagram.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

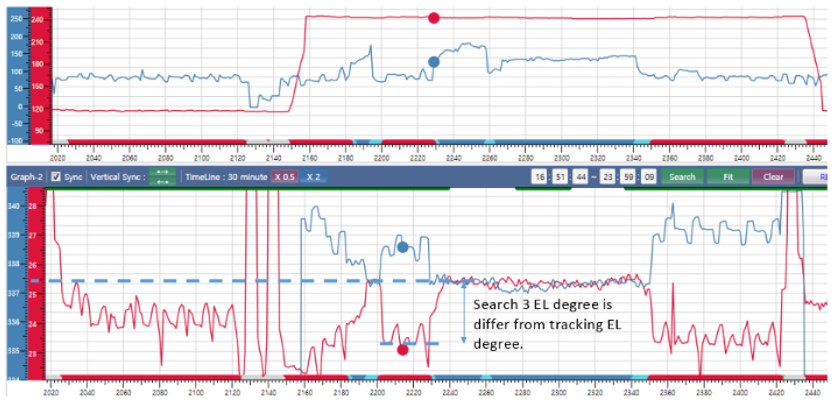

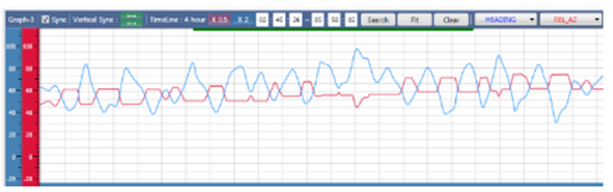

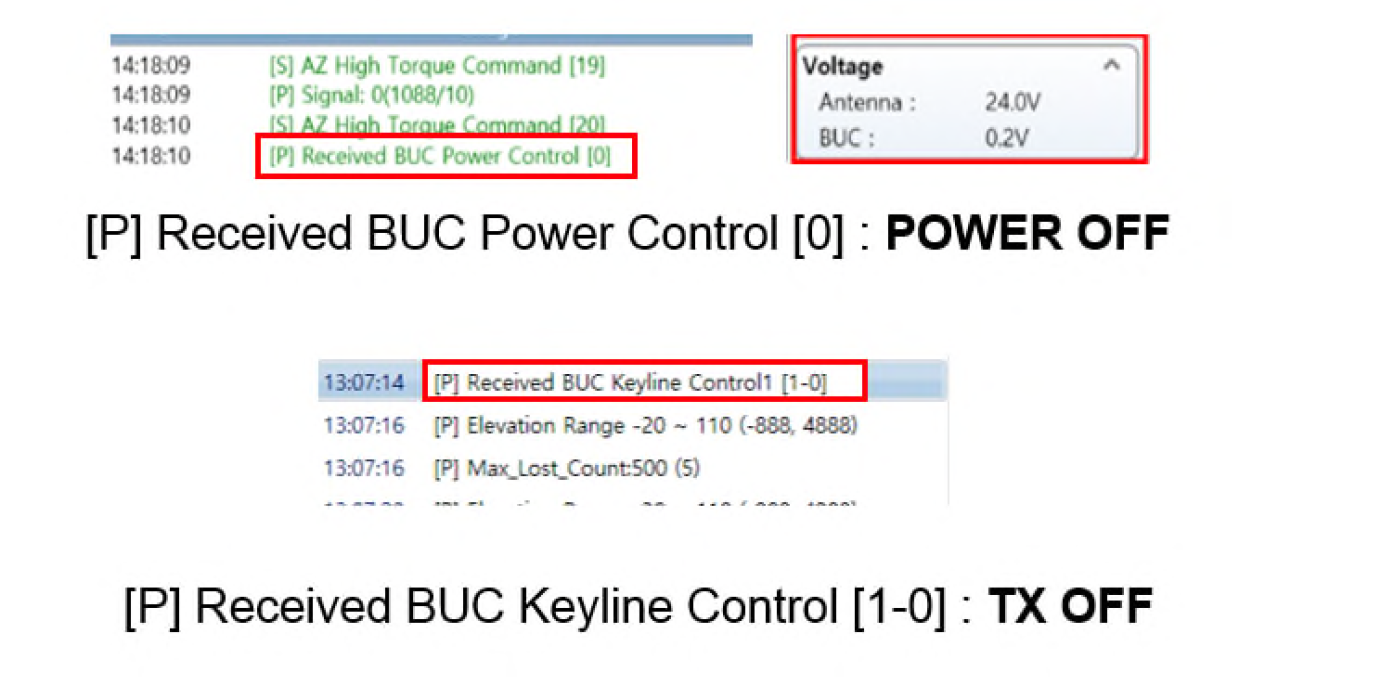

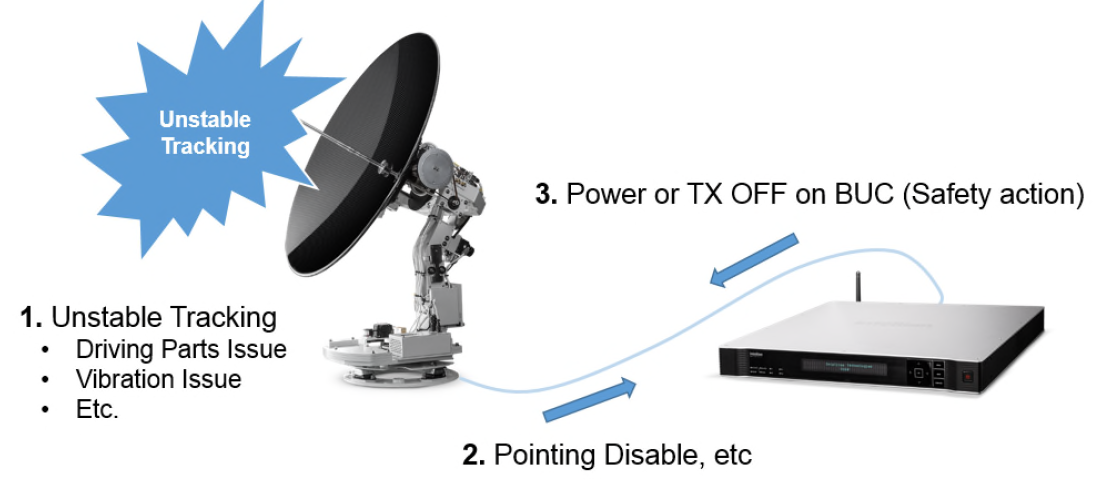

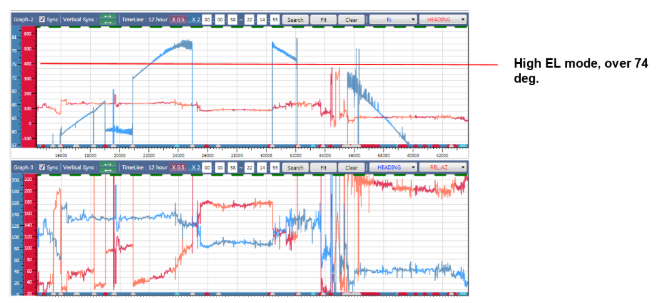

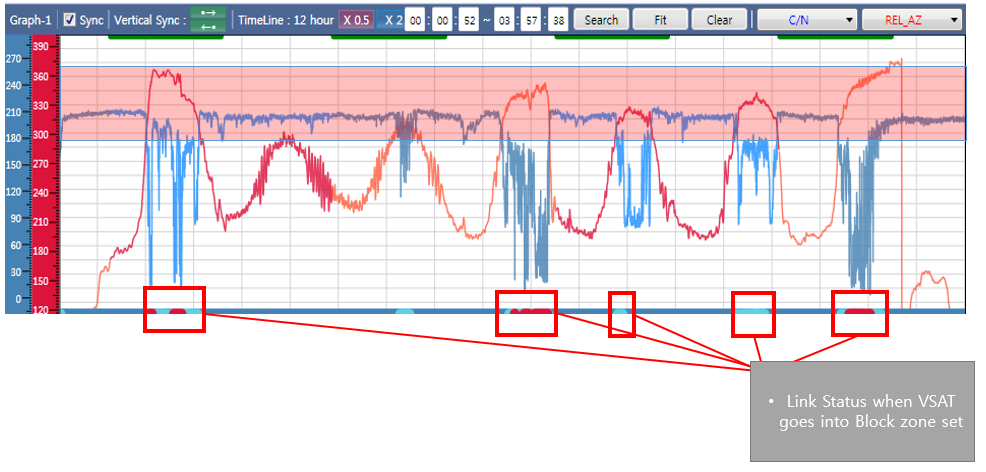

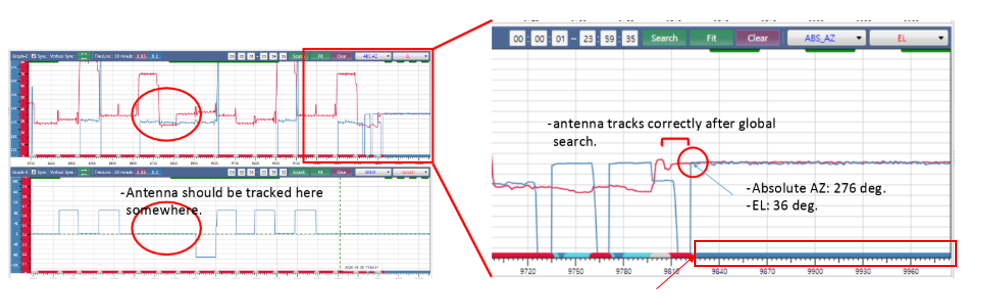

I have an issue with my VSAT antenna, it is not tracking and always in search mode. What should I do?

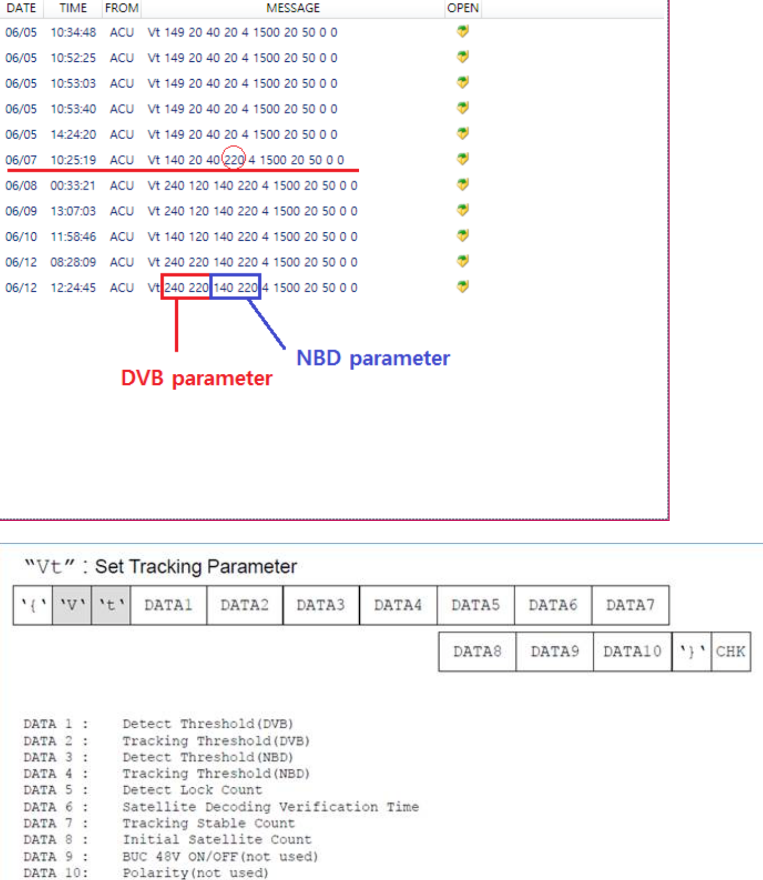

If your VSAT antenna remains in Search mode on the display, please start by checking the following. Has the antenna worked or is this in the setup phase? Is the correct satellite set as the target satellite?
This is often set automatically from the modem using Open AMIP. Check that the modem is on and connected. It is also good to check that the signal is not blocked externally by a port crane or other obstruction. Also check that the GPS position is displaying the correct position for your area. If the system remains in search mode then contact your local dealer or Intellian Technical Support support@intelliantech.com .

Categories
Technical Support, VSAT
05 October 2020
FAQ

Can the Intellian Satellite TV Antenna be used in both Asian and Europe?

The Intellian i-Series antenna models for Americas, Asia and Europe may appear to be identical but there are distinct differences in hardware inside the antenna; the LNB used to convert the satellite signal, located in the antenna of the satellite system is specific to the geographic location. It is not possible to receive Asia satellite signals using the European version and vice versa.
Intellian offers a solution for this with our Worldview products, these can work globally and electronically switch between regions. Worldview systems are available on all t-Series, the s80HD and s100HD along with the i6W and i9W.
If you are unable to find a dealer in your area, you can also contact Intellian directly via email at support@intellian.com

Categories
Technical Support, TVRO
05 October 2020
FAQ

Is there any required parts or tools for antenna installation?

In the product installation manuals we list the suggested tools needed to complete an installation of the antenna and the antenna control unit. You may download the manuals for the product in the download section for each system.

Categories
Technical Support, Product, VSAT, TVRO
05 October 2020
FAQ

What should I do if our?products were damaged during shipping?

Please inform the shipping carrier of any damage when you receive the items and then also contact the local Intellian logistics center who shipped the products to you.

Categories
Sales, Others
05 October 2020
FAQ

What is the operating temperature of Intellian antennas?

Intellian antennas have a safe operating temperature range and this information is provided in the manuals and in the product datasheets. There is also a safe storage temperature range and this is also listed in those documents. Please contact your local sales account manager for more information.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

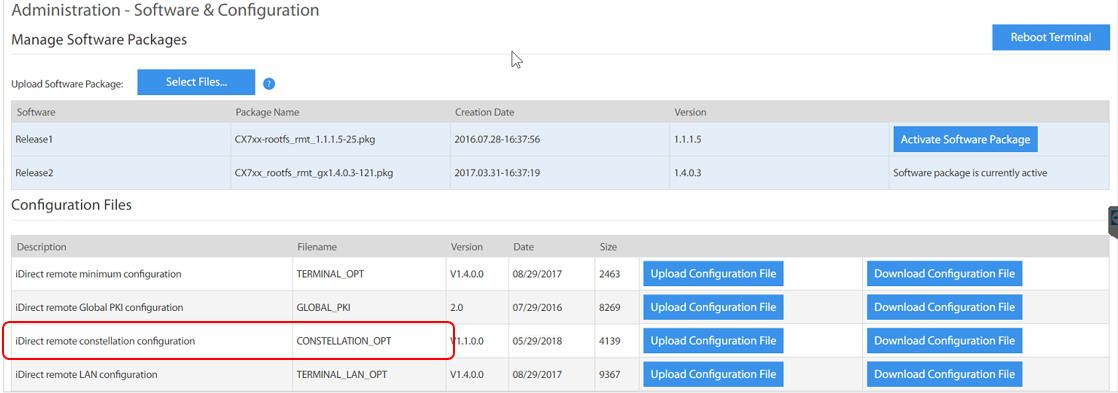

Are Intellian antennas capable of working with IDirect, Newtec and Comtech modems?

Intellian VSAT antenna systems are designed to work with all current modems. For special cases, you may contact Intellian Technical Support or Product Management to discuss modem interfacing protocols. Intellian antenna systems support the Open AMIP communication protocol.

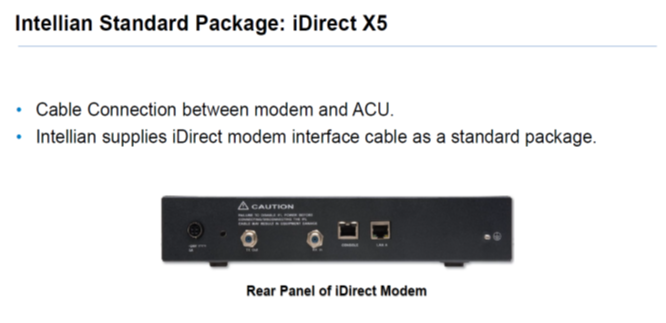

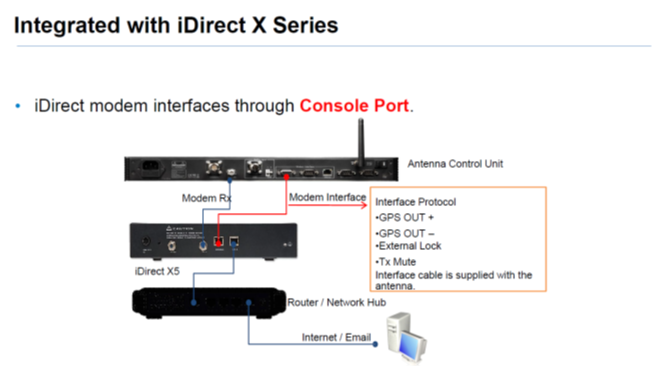

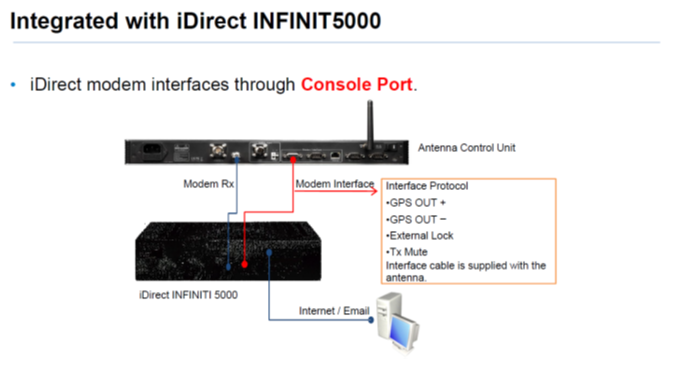

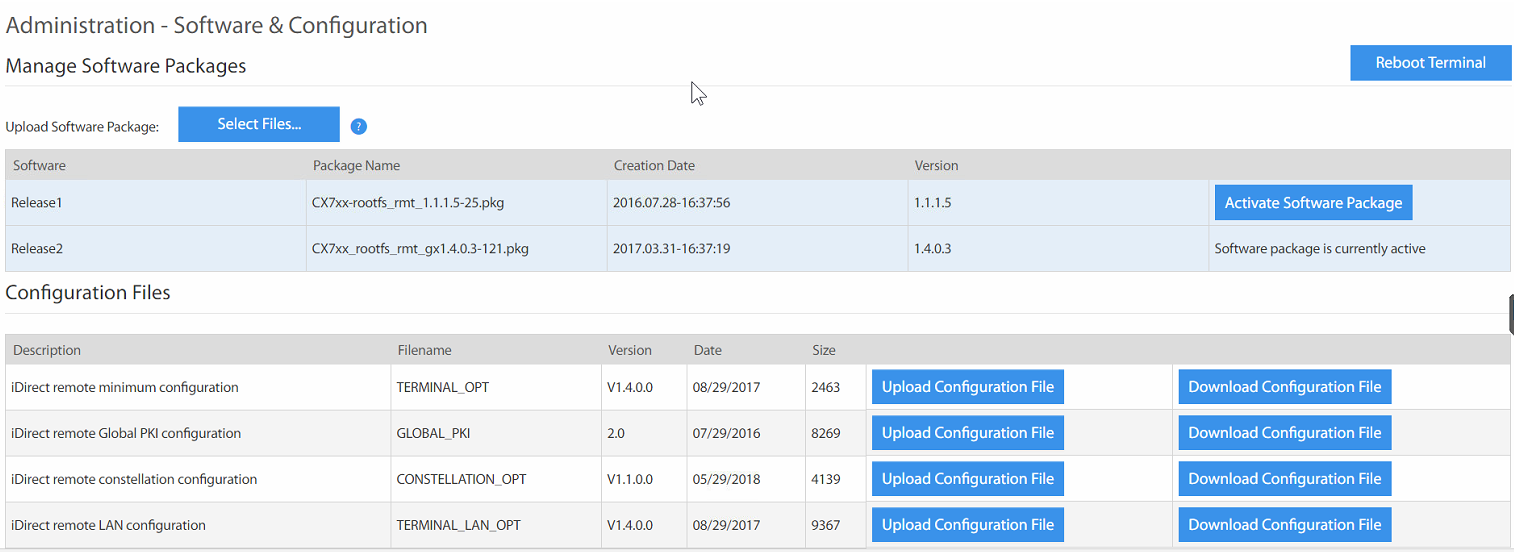

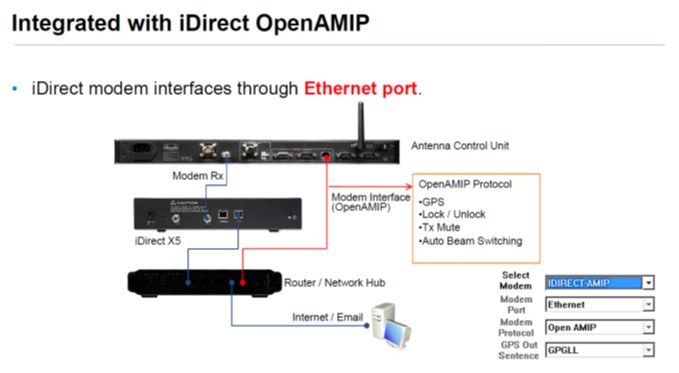

Below is the example of configurations of iDirect modem and Intellian v100 ACU.








Categories
Product, Others
05 October 2020
FAQ

What Sat TV systems will support 4K or UHD programming?

This is dependent on the Sat TV service provider. In the US, DIRECTV is broadcasting some content in 4K or UHD and the Intellian s-Series works well with this content provided you have a 4K/UHD receiver, TV and are subscribed to 4K content.

Intellian s-Series can receive all DirecTV HD and SD channels.

Categories
Product, TVRO
05 October 2020
FAQ

Can I use a DVR on my Sat TV system?

It is possible to use a DVR (digital video recorder) on some of our Satellite TV systems. DVR receivers have two or more tuners that require individual RF feeds. This would require a multi-switch to accomplish this. It is also a requirement that the system does not switch satellites while recording, which happens occasionally with Dish Network or Bell TV broadcasts. Please check with your local dealer or supplier for more local information on which DVRs may work.

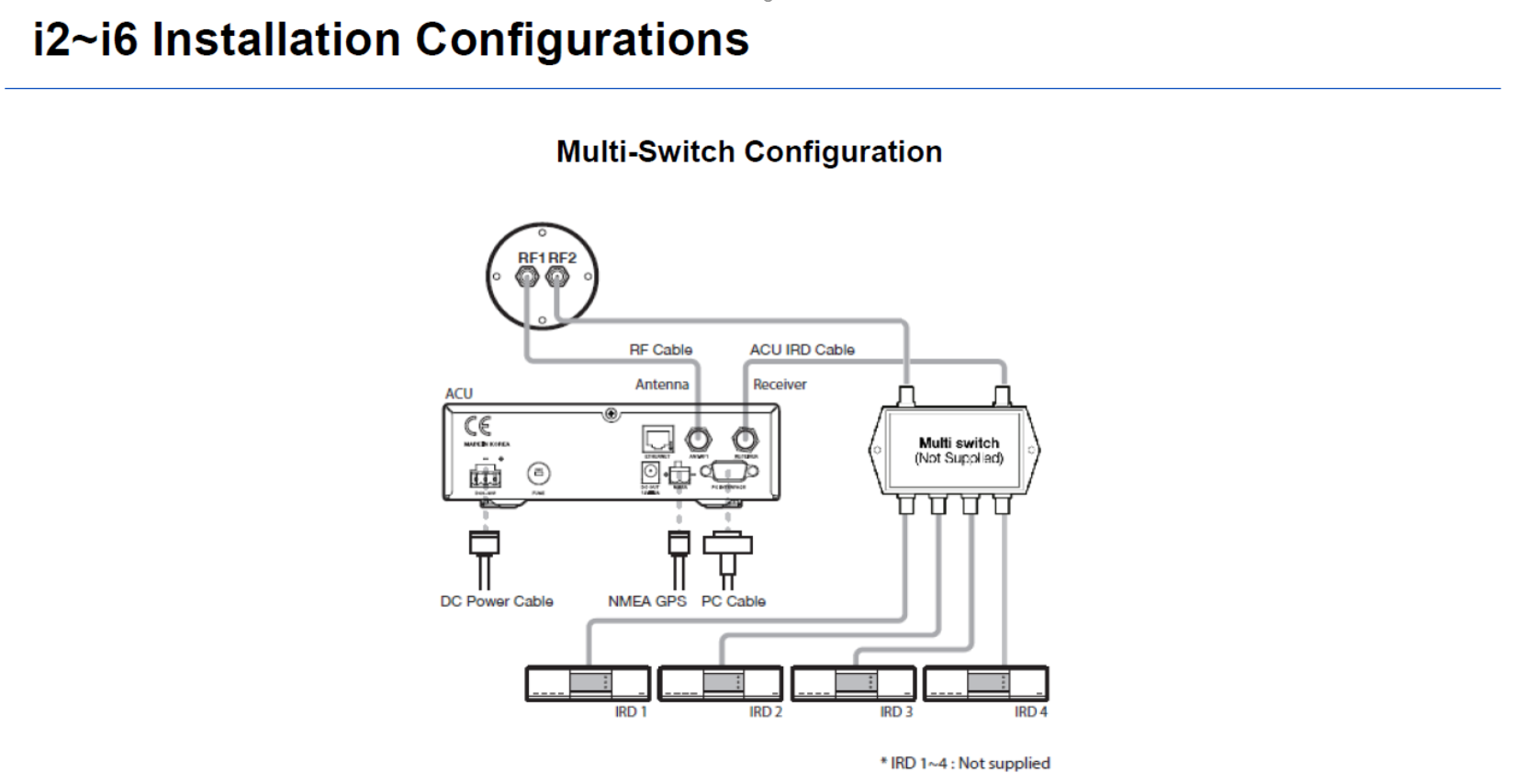

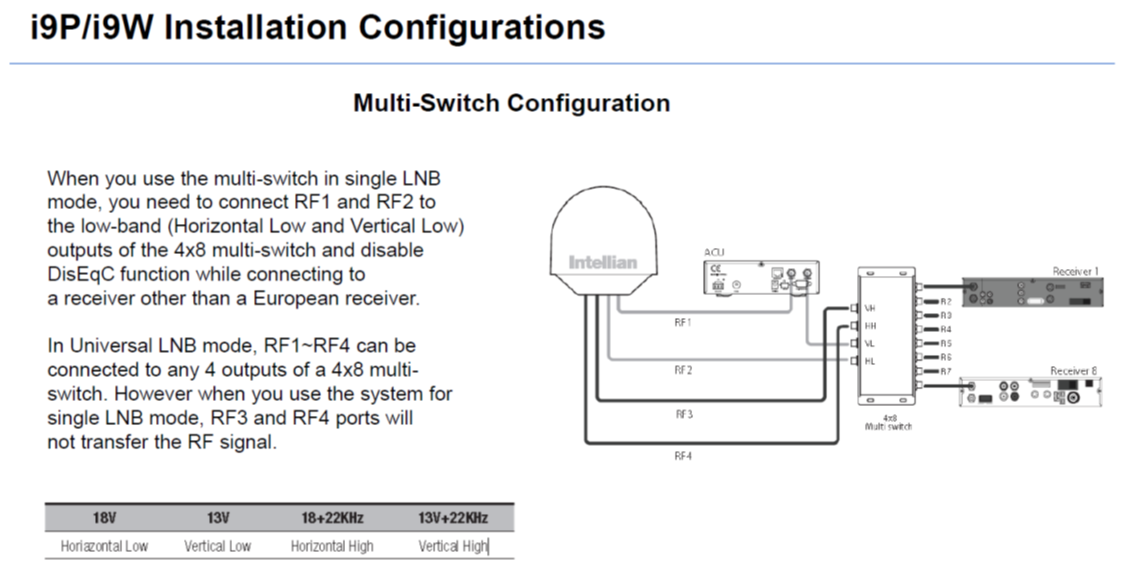

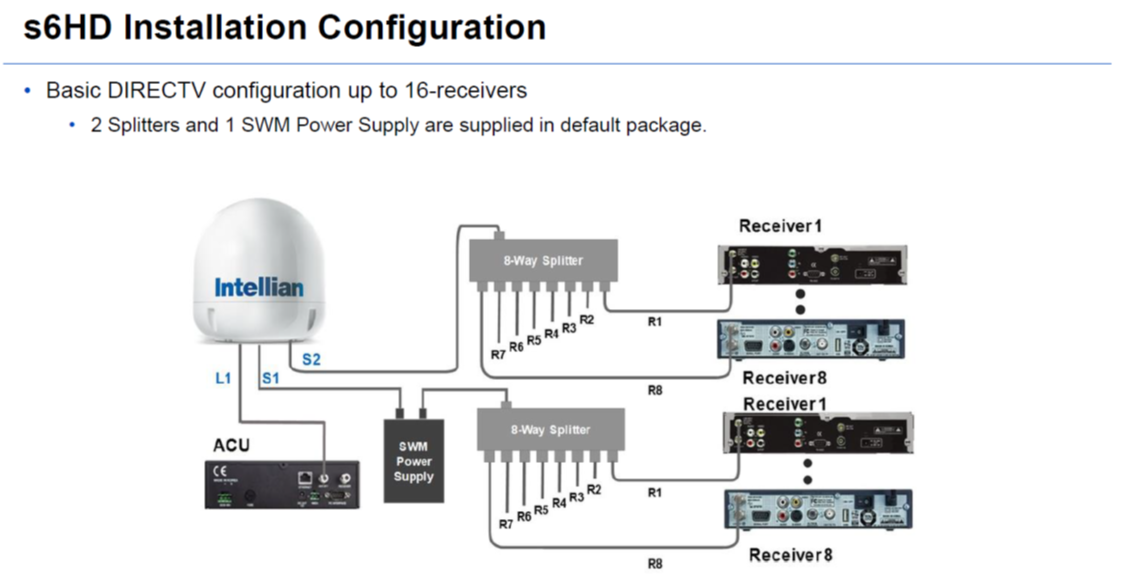

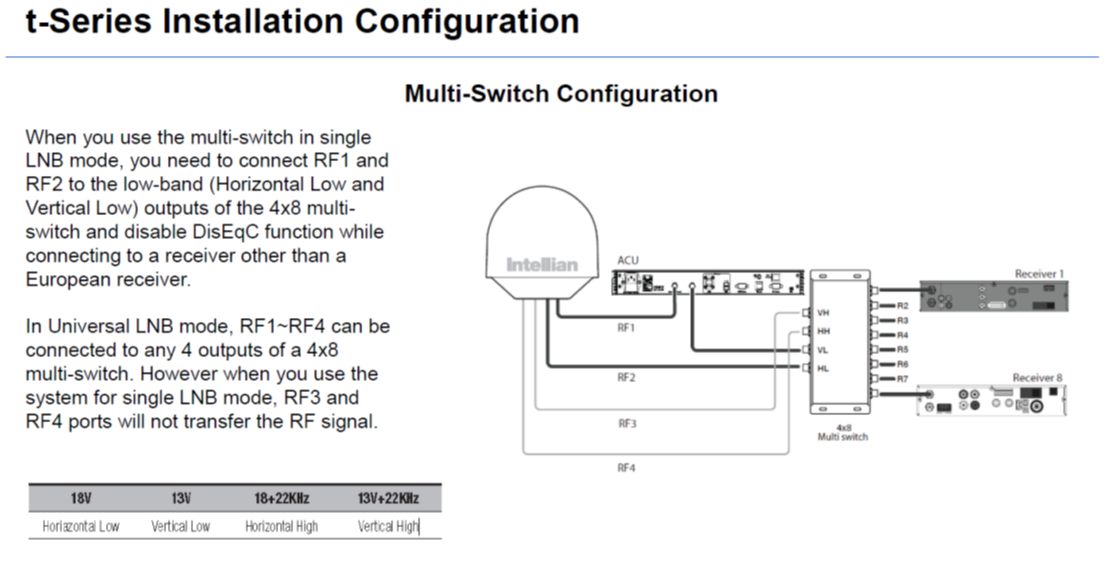

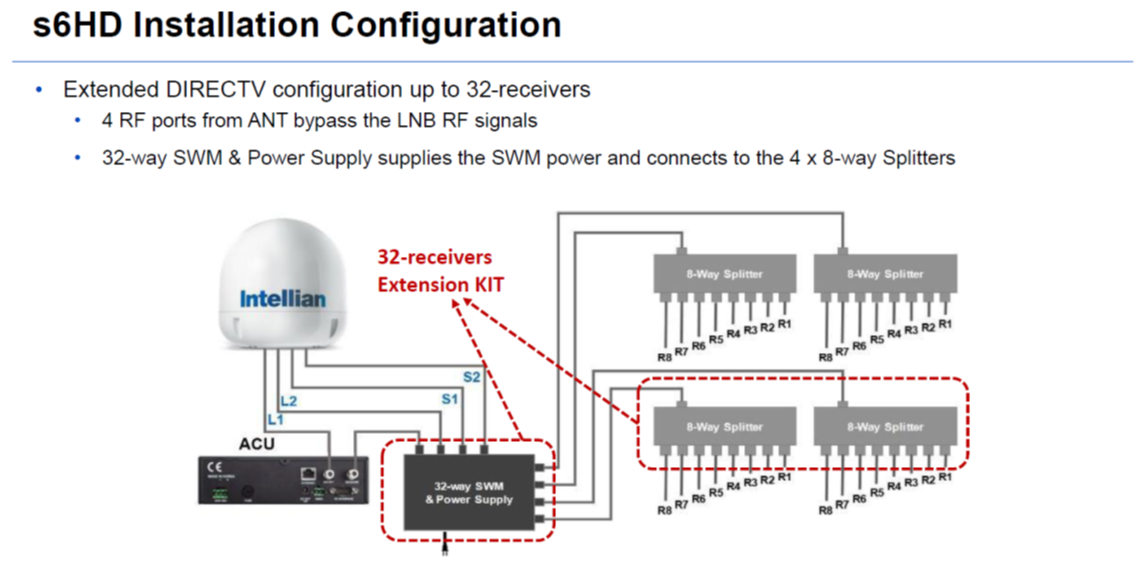

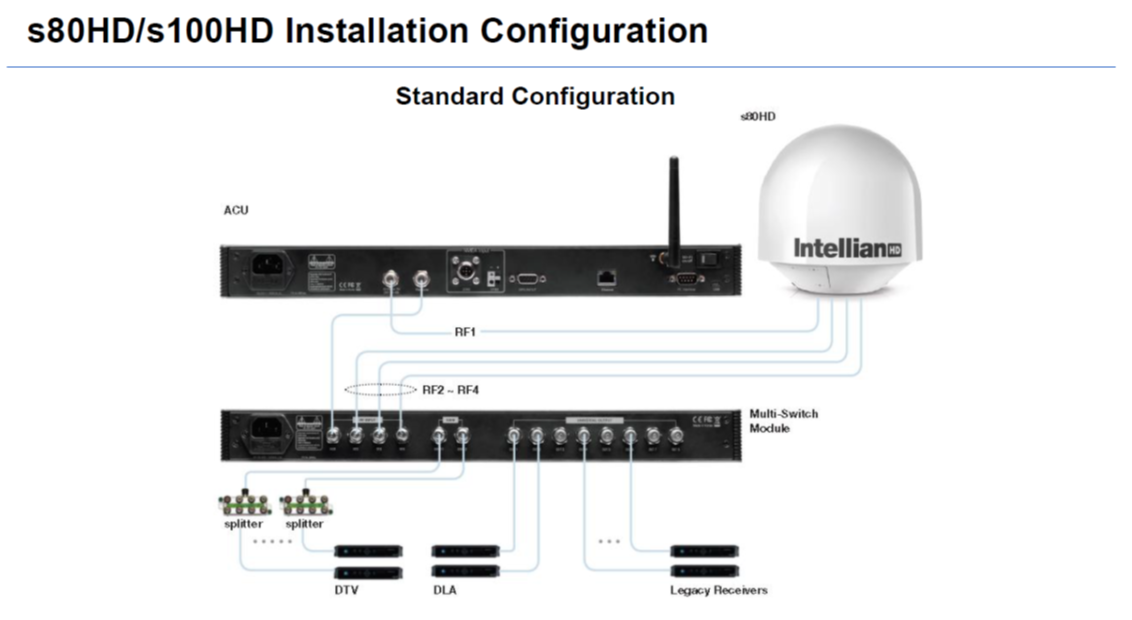

Below is the example of the multi-switch configuration with Intellian TV antennas.













Categories
Product, TVRO
05 October 2020
FAQ

Do you offer empty antenna domes so I can balance the look on my yacht?

Yes, Intellian does offer all of our antennas as empty domes to help balance the look of your yacht. Many of our customers also use the empty domes to hide other smaller antennas inside, such as GPS or AIS, to maintain a nice, sleek look.

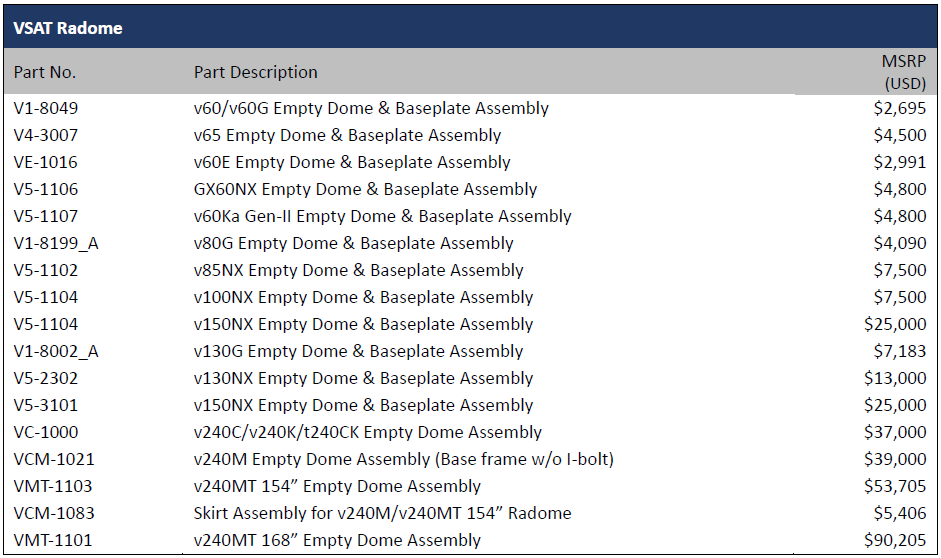

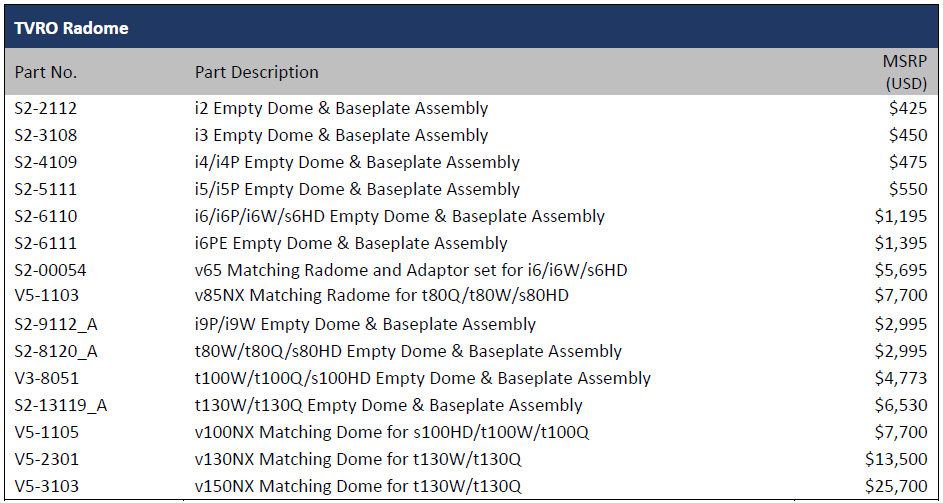

The empty dome list of all Intellian antennas is as follows.






Categories
Product, TVRO
05 October 2020
FAQ

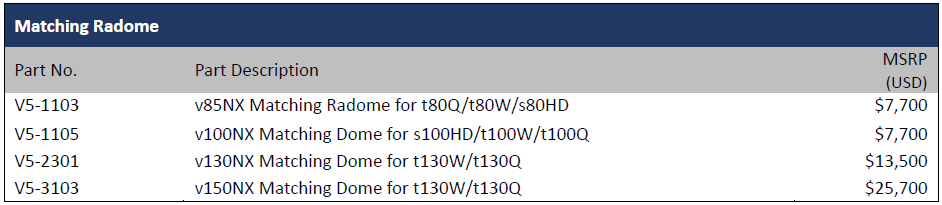

Can I get matching domes for my VSAT system?

Intellian offers a complete range of satellite TV systems in matching domes to the VSAT satellite communication antennas. See the Satellite TV pages for details.

All NX matching domes for equivalent sized TVRO system are available.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

How do I determine which size TVRO antenna I will need?

The most important selection criteria when choosing a satellite TV antenna is where you are going with the boat as the further offshore you travel the weaker the signal is and therefore you will need a larger antenna. Please consult the Satellite TV Coverage maps for your region and TV provider to determine the correct antenna for you.

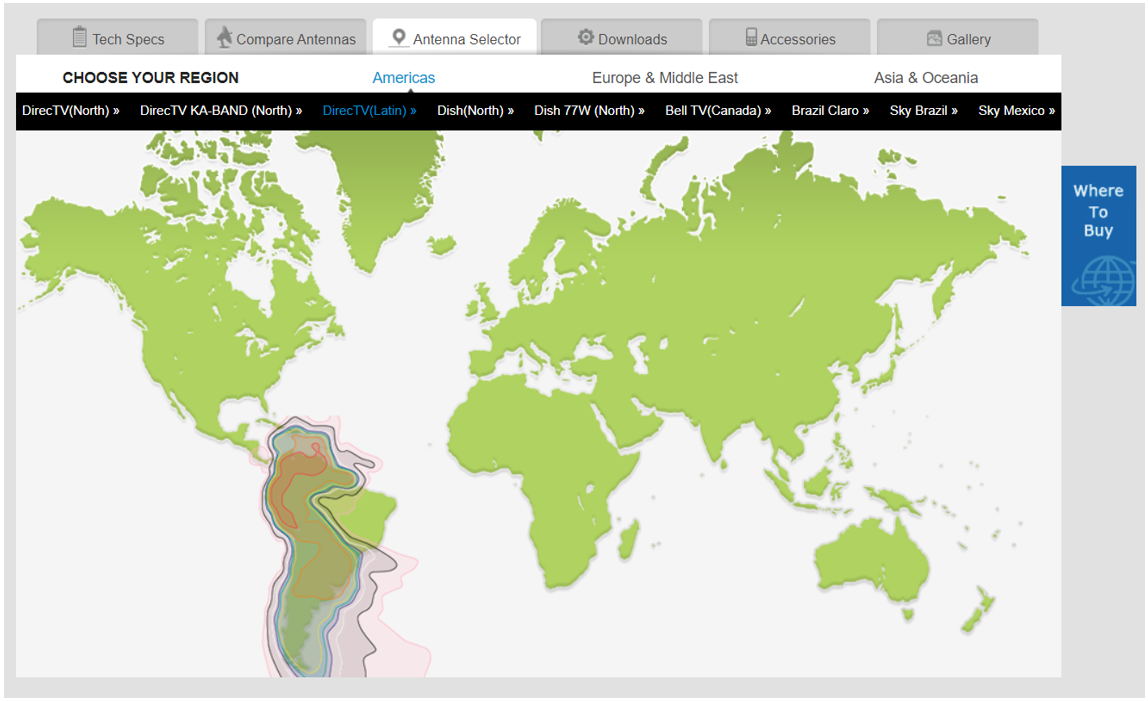

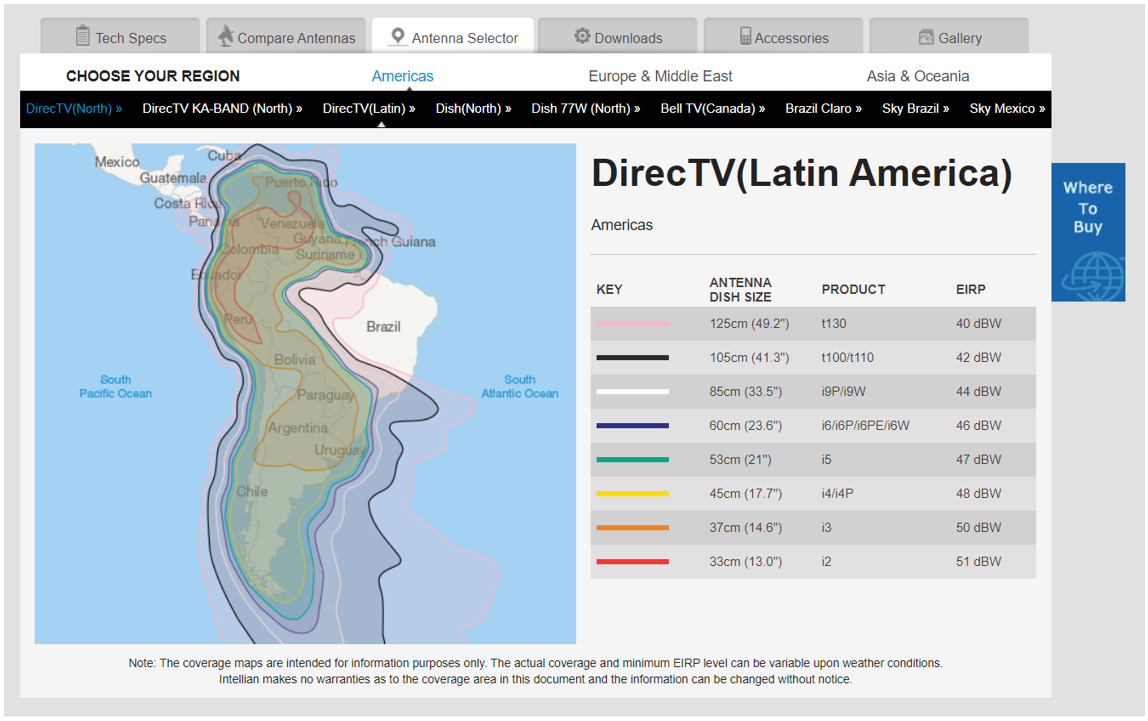

Intellian Satellite TV page > Antenna Selector > Choose your Region (Americas/Europe & Middle East/Asia & Oceania) > Choose the satellite


Click the map to see the detailed coverage map and check the coverage and the recommended antenna.



Categories
Product, TVRO
05 October 2020
FAQ

If I travel into another region that uses a different TVRO Provider, what do I have to do to change programming?

This depends on the region that you are in. In Europe, you will need to get a new receiver for the area that you are in and select the new provider using the Load Region function in the setup menu. If crossing from one region to another you may need to change the LNB, or if you are using a WorldView antenna just select a new region in the Antenna Control Unit.

Certain regions of the world use different signal frequencies and polarization, so it is important if you plan to go to another region that you consider a WorldView antenna, as this will cover you wherever you go.

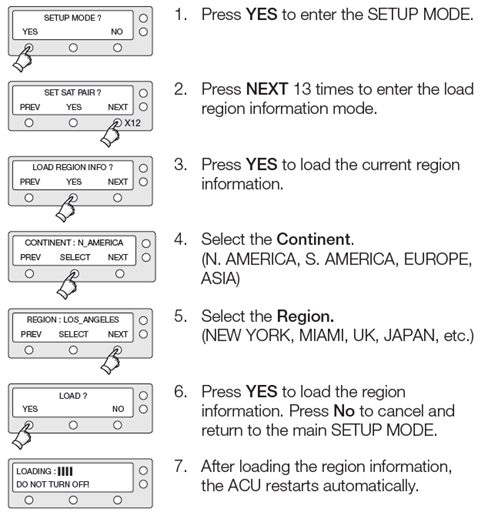

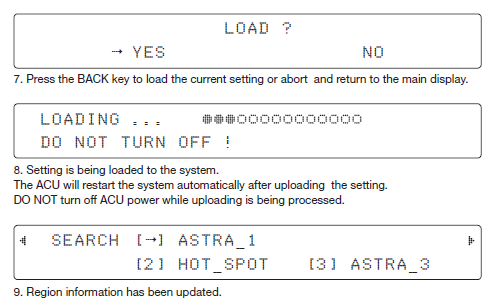

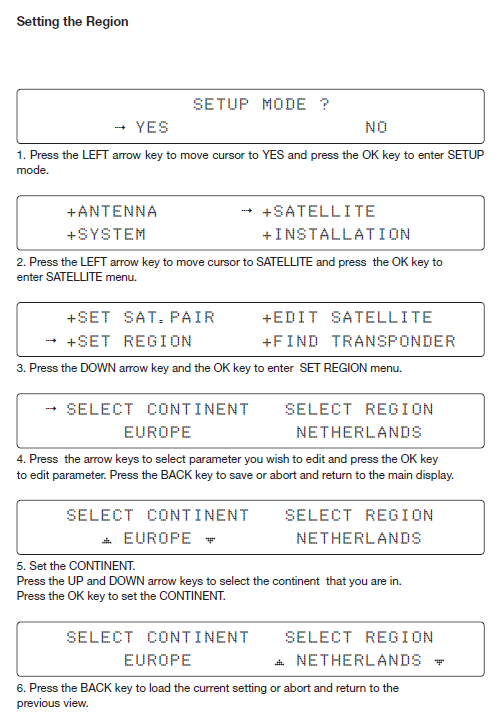

i-Series Load Region setup


t-Series Load Region setup







Categories
Product, TVRO
05 October 2020
FAQ

What size BUC requires the addition of an air conditioning system when using a 1.5 or 2.4 meter VSAT System?

While it is somewhat dependent on the average ambient temperature Intellian recommends air conditioning antennas that use 100W BUCs or higher. If the system will be operating in a colder climate then it may be possible to operate without.

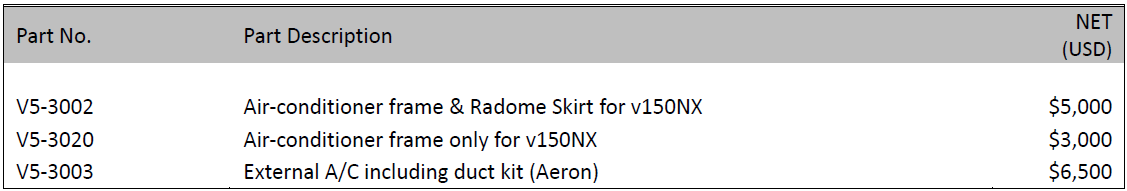

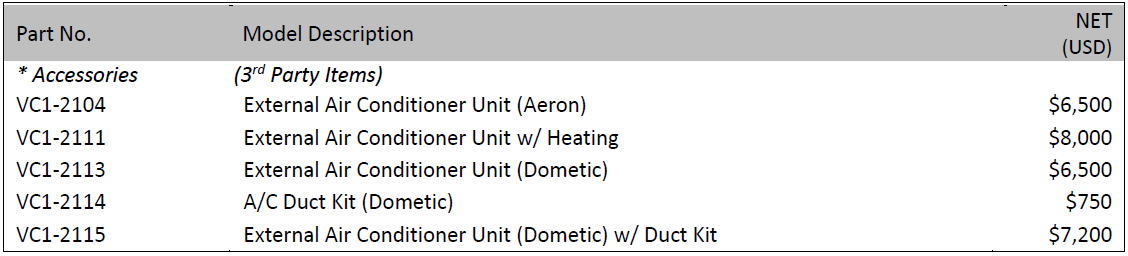

Intellian offers the air-conditioning units for 1.5m or 2.4m VSAT systems as follows.

For v150NX system

For v240C, v240K, v240M, v240MT





Categories
Product, VSAT
05 October 2020
FAQ

Do Intellian Satellite TV systems operate on Ku-band or Ka-band?

Most of the Intellian Satellite TV systems are designed for receiving in Ku-band. The s-Series range, s6HD, s80HD, and s100HD enable simultaneous reception from all three DirecTV satellites; combining Ku- and Ka-band signals. These systems are specifically designed for DIRECTV in the US. In all other regions of the world Satellite TV is broadcast on Ku-band.

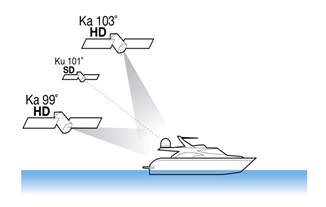

Intellian s-Series receives DirecTV Ku-/Ka-band simultaneously.

Categories
Product, TVRO
05 October 2020
FAQ

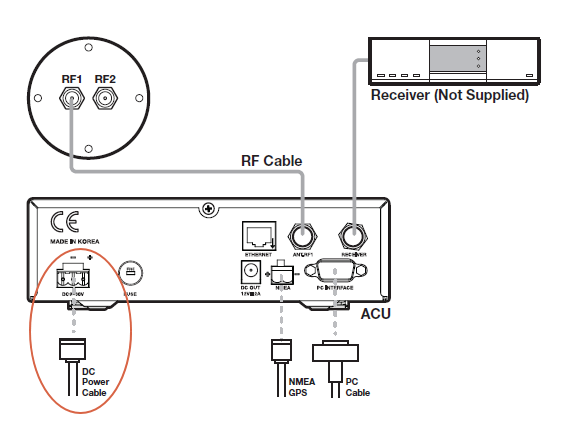

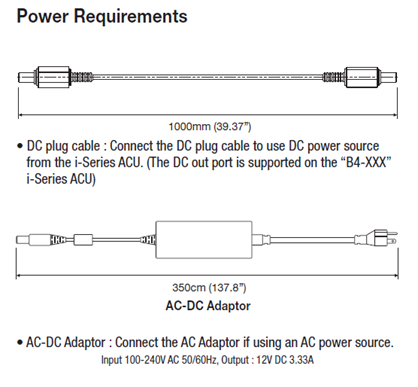

What are the DC power requirements for an i-Series antenna, ACU and MIM?

The i-Series Systems require 9-30 volts DC, with a maximum power requirement of 50W, typical 30W. The antenna receives its power via the RF1 cable between the ACU and antenna. The Intellian MIM is supplied with its own AC/DC adaptor that requires a 110 volt AC outlet, alternatively it can also be connected to the DC Power Out connection on the back of the i-Series ACU using the provided power cable. The MIM is only required on installations that are to receive Dish TV in the US or Bell TV in Canada.

I-Series Power Input


MIM AC/DC Adaptor



Categories
Product, TVRO
05 October 2020
FAQ

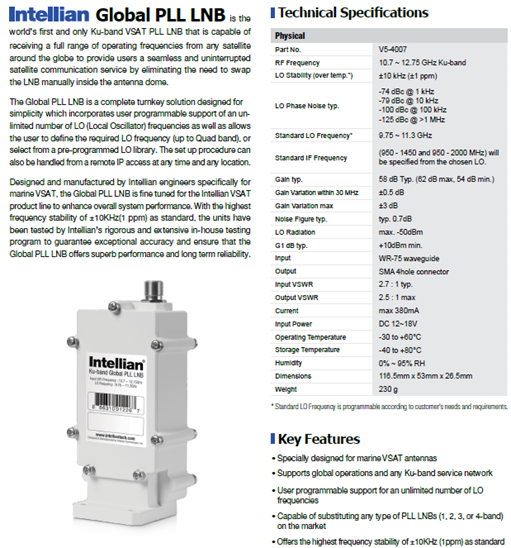

What is the local oscillator (LO) stability of the Intellian Global PLL LNB?

The LO stability of the Intellian Global PLL LNB is ±10 kHz (±1 ppm). This ensures better tracking performance and throughput stability for all Ku-band Intellian VSAT systems.

PLL LNB Specification

Categories
Product, Spares Accessories
05 October 2020
FAQ

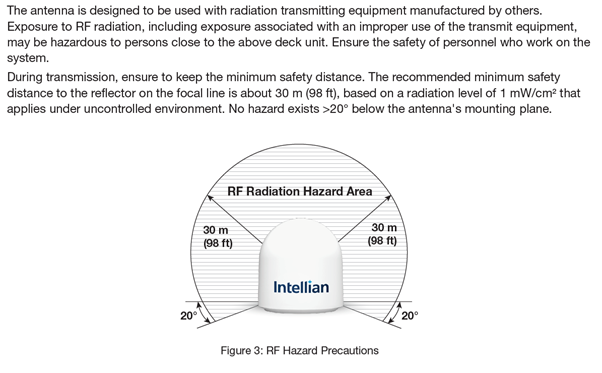

What is the recommended safe distance we should keep when working on an operating and transmitting RF antenna system?

The Safe Distance varies based on antenna types and transmits power. All antennas are provided with suitable warning labels indicating the Safety Distance for the specific model. Please also consult the technical bulletin for specific details.

v60E



Categories
Product, VSAT, TVRO
05 October 2020
FAQ

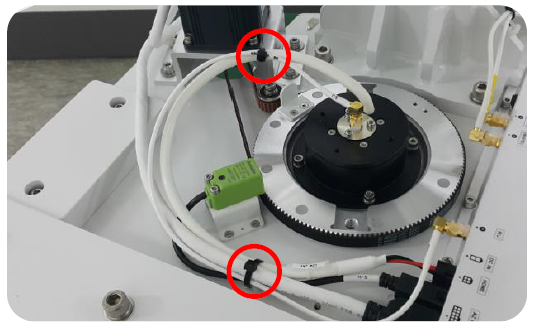

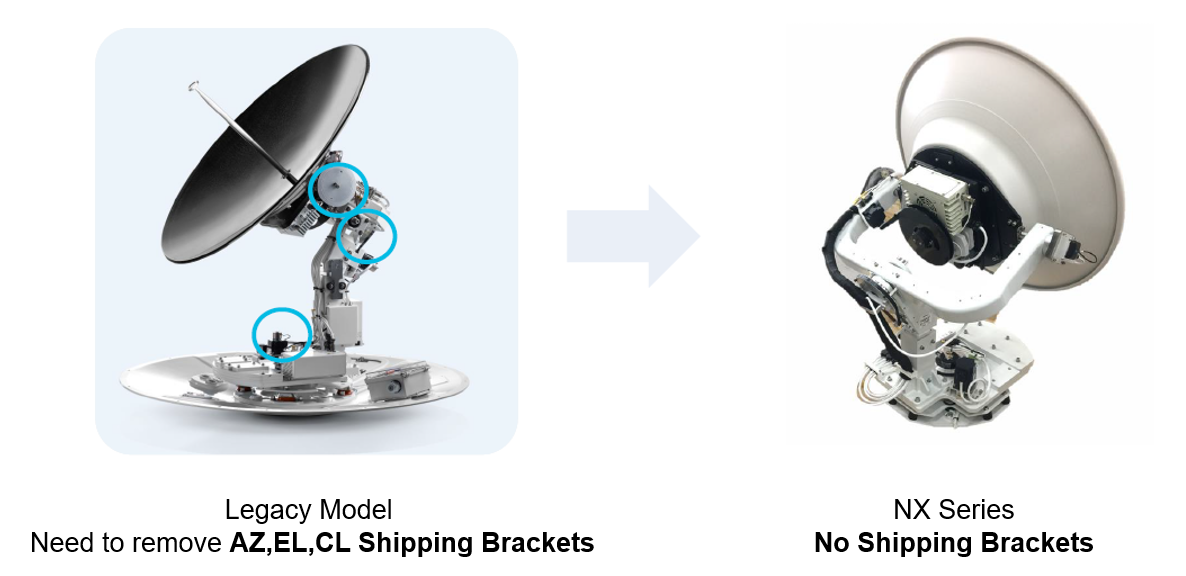

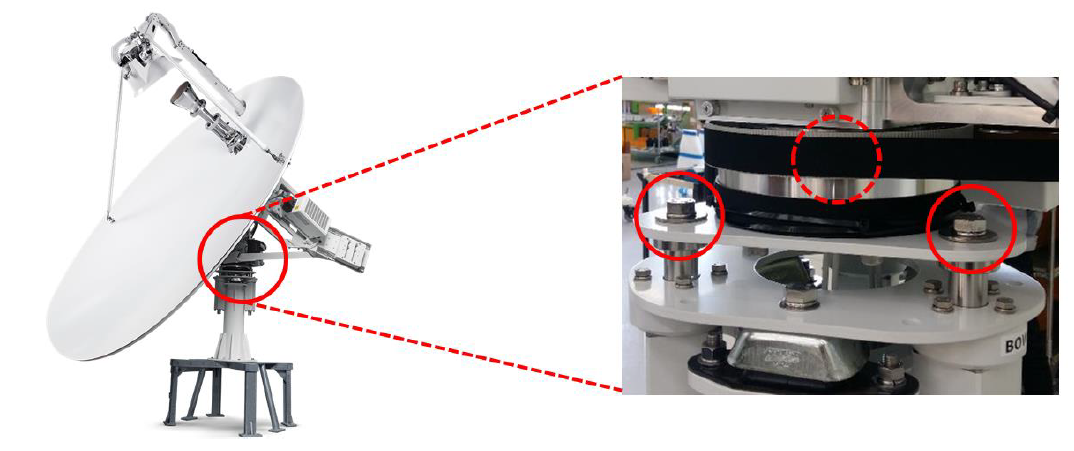

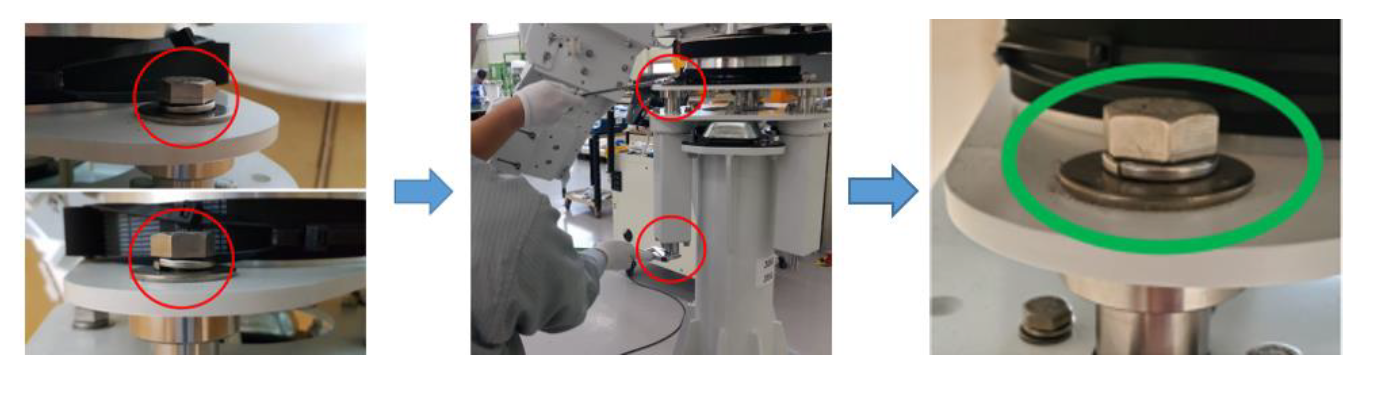

Do engineers need to remove shipping brackets inside the antenna during the installation phase of all NX Series?

The NX series does not require the removal of shipping brackets as they are not required on the NX series of products. The antenna is protected by Dynamic Braking on all three axis. The dome does not need to be removed during the installation procedure. The RF cable also connects on the outside of the dome to ensure quick and efficient installation.




Categories
Technical Support, VSAT
05 October 2020
FAQ

Is Intellian a certified Inmarsat Global Express Terminal Manufacturer?

Yes, Intellian is a certified Inmarsat Global Express Terminal Manufacturer. We provide the GX100NX, GX100PM, and GX60NX Maritime Terminals. We also manufacture High Power versions with 10 Watt BUCs for increased uplink speeds.

Categories
Product, VSAT
05 October 2020
FAQ

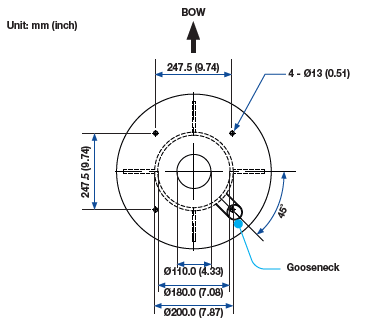

The customer has an aging legacy Intellian v100GX onboard the vessel and we plan to replace it with a v100NX. Does the ship crew need to fabricate new mounting holes for the NX series?

The bolt pattern for mounting are the same, so the new antenna will be able to use the current mounting plate. Both legacy v100 and new v100NX and most Sub 1.5M series share the identical dimensions of 247.5mm bolt to bolt.

Categories
Technical Support, VSAT
05 October 2020
FAQ

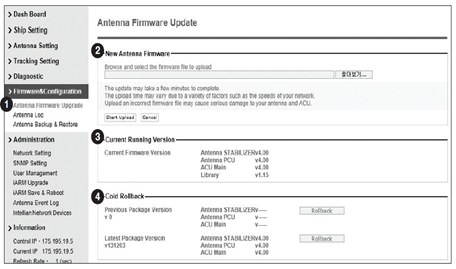

How do I upload the FW and library on a t-Series system?

For t-Series, you can upload the FW and library from the Aptus web service within the antenna, just connect a browser to the antenna control unit and log in. Detailed instructions are contained in the manual.

Categories
Technical Support, Firmware
05 October 2020
FAQ

I need to download the latest firmware for my VSAT and TVRO system, where do I find them?

Using the Aptus PC software to update firmware is the best solution, as the software is linked to the Aptus Server and the latest versions of all the firmware and library files. Dealer & Partners can also locate the files on the Partner Portal or you can send the serial numbers to support@intelliantech.com and our engineers will be able to provide you with the latest firmware.




Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

How do I preselect 2 or 3 satellites on the t-Series using the ACU front panel?

To change satellite settings on the antenna you will need to enter the Setup Mode using the menu and directional arrows on the keypad. Once in Setup the Satellite menu option allows you to set your satellites based on your country of operation and service provider. For a complete description please download the manual.

Categories
Technical Support, TVRO
05 October 2020
FAQ

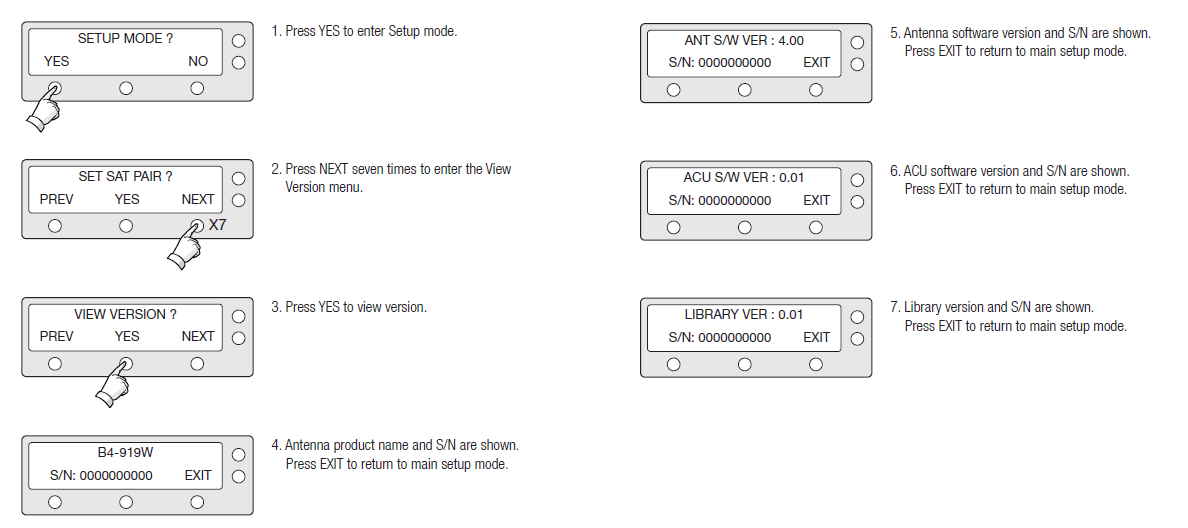

How do I view the Serial Number on an i-series ACU?

To display your serial number, along with software and firmware versions you need to enter Setup mode on the ACU. Once in setup, press Next until you are at the View Version option, click select and the Product Number and Serial number will be displayed. Click next to view other version information, or Exit to return to the main menu.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I connect Intellian Sat TV system to multiple IRDs (receivers)?

You can hook up multiple receivers to an Intellian system so that you can enjoy different channels on each TV monitor. All Intellian antennas are capable of supporting multiple receivers and TVs. To do this a multiswitch may be required with legacy type receivers or a SWM Splitter if using DIRECTV. If using Dish or Bell TV with a MIM, up to 4 receivers can be supported, additional receivers can be added with an extra MIM.
If you are still having difficulties or have any questions, please contact the Intellian technical support team at support@intelliantech.com .

Categories
Technical Support, TVRO
05 October 2020
FAQ

My antenna is tracking the right satellite but it will not get a DVB lock and continues to search.

Use the Setup mode again and reload the region file and perform sat pair selection. If you continue having the same issue, contact support@intelliantech.com so they can double check the frequencies to make sure that they are correct. Sometimes frequencies change on the satellite and it will need adjusting.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Where can I find a customer reference list?

You can obtain an up to date reference list from your account team or by contacting us at sales@intelliantech.com

Categories
Sales, Others
05 October 2020
FAQ

What are the specifications and dimension of the Intellian i3?

Complete Intellian i3 specifications, including power requirements, dimensions, and instructions for operation, can be found in the Intellian i3 product brochure and user manual, both of which are available to download in PDF format on the product page.
If you are still having difficulties or have any questions, please contact the Intellian technical support team by submitting a question using email at support@intelliantech.com .

Categories
Product, TVRO
05 October 2020
FAQ

I'm getting a "Searching for Satellite Signal" message on the TV, what should I do?

Wiring problem: If the HDTV components are not wired correctly, the system will not work. Refer to your Owner’s Manual, verify that your system is wired properly.
Antenna powered off: The Intellian antenna must be turned on for the system to work. If the system is entirely non-functional, check the power switch or the circuit breaker to ensure that the antenna is turned on.
Antenna tracks wrong satellite: If you select a channel on the receiver, but the wrong programming or no programming appears on the TV, that channel might be carried on a different satellite from the one the antenna is currently tracking. Try switching to another satellite.
Satellite signal blocked: Satellite signals can be blocked or degraded by buildings, other vessels or equipment on vessel itself. Check to see if the antenna has a clear view of the sky. Refer to your owner’s manual, to make certain that the Intellian unit is in the optimal location.
Outside of satellite coverage zone: Intellian systems provide excellent reception within the antenna coverage area for your satellite television service. However, signal quality may degrade as you approach the edges of coverage zone.
Weak satellite signal: Just like radio stations, some satellite TV channels are transmitted at a stronger signal level than others. If you're unable to receive a clear signal on one channel, try switching to a stronger channel. Weaker channels are more vulnerable to interference, such as rain or snow.
If you are still having difficulties or have any questions, please contact the Intellian technical support team at support@intelliantech.com .

Categories
Technical Support, TVRO
05 October 2020
FAQ

Can I buy a different color of radome?

All intellian antennas are provided in the same white color. We do provide our Mil Spec antennas in select grey color options. It is possible to paint radomes to match a boat color scheme, but this can have an adverse effect on the performance of the antenna. Please consult your local dealer.

Categories
Product, Sales, Others, VSAT, TVRO
05 October 2020
FAQ

What is the main difference between the v130 and the v130G?

The v130 and v130G have been replaced with the v130NX, however the main difference between the earlier models is the v130 required 3 cables to the antenna, where the v130G only required 2 cables and could operate in Gyro free mode. The v130NX system only requires an single cable to the antenna from the below deck unit.

Categories
Technical Support, VSAT
05 October 2020
FAQ

Where can I find information on Intellian APTUS software?

Aptus is the Intellian management and control software, which is now built into our recent satellite communication products. For older products, and t-Series a PC version of the program is available for download from your local dealer. This software is designed for dealers to manage and update Intellian products. For dealers and partners, download information can be found within our partner portal.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Can I use the existing cables I have installed on my boat to connect the TVRO antenna and ACU?

A quality RG6 Coax cable is highly recommended between the Intellian ACU and the antenna to get the best performance and reliability of your system. Ensuring the quality and reliability of old cables is always difficult. To ensure reliable performance Intellian recommends that you utilize the cables provided with the system or purchase similar type cables if required.
If existing cables are used, then ensure that the F-Type connectors are free from corrosions and the cables are in good condition, especially where exposed to the weather.

Categories
Technical Support, Spares Accessories, TVRO
05 October 2020
FAQ

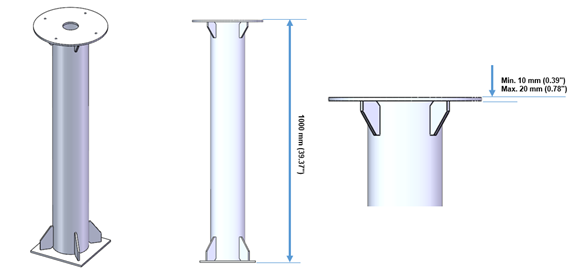

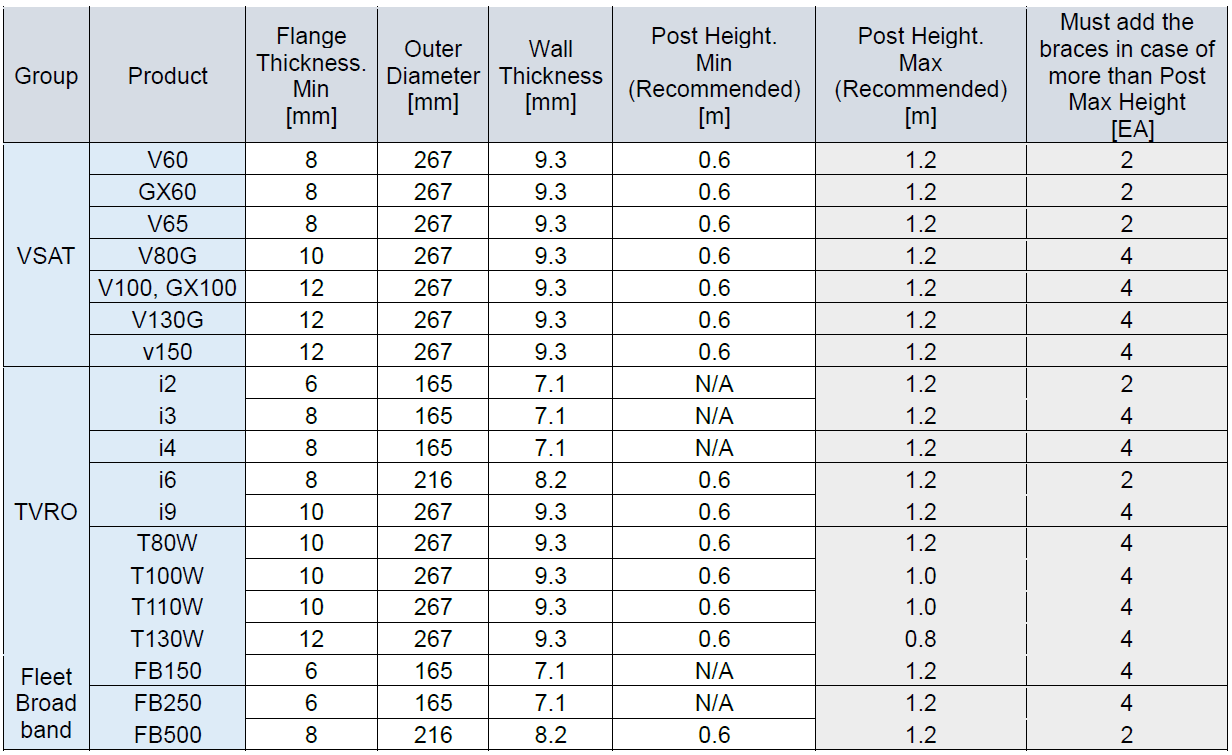

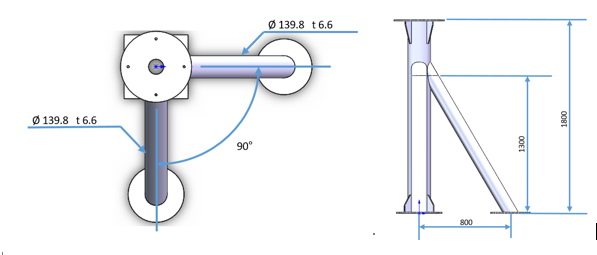

What is the recommended material for the mounting pedestal used to install an Intellian antenna?

When installing Satellite antennas onboard a vessel, a strong and sturdy mount should always be used. These can be produced in a variety of materials, but should be produced to survive the extreme maritime environment. There are a number of dedicated mount manufacturers that produce a complete range of mounting solutions for the smaller Intellian TVRO systems. Check out Scanstrut or Seaview. For VSAT antenna installation please consult the manual for suggested solutions.

Categories
Technical Support, Spares Accessories
05 October 2020
FAQ

What does my error code signify from the diagnostic report?

All error codes and diagnostic report information is contained in the product manual. These product manuals can be downloaded from the product page.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Where can I download the service manual for my VSAT antenna?

Service manuals for the VSAT antennas are made available to registered Intellian Service Dealers through the Intellian Partner Portal.

Categories
Technical Support, Product, VSAT
05 October 2020
FAQ

How do I log in to the partner portal?

The Intellian Partner Portal is made available to all Intellian dealers and service partners. An account request can take 24 hours to be processed.

Categories
Technical Support, Sales, Others
05 October 2020
FAQ

How do I know which Spares part number I need for my antenna?

Spare parts are made available to dealers and service partners, and a Parts Lookup tool is available in the Intellian Partner Portal.

Categories
Technical Support, Spares Accessories
05 October 2020
FAQ

Where can I download the latest firmware for my antenna and update it?

You can download the latest firmware for your antenna from within Aptus itself. On the top ribbon, click on firmware updates and a window where all the latest firmware versions will be displayed for the various antenna models will pop up. If you are connected to an antenna, it will highlight your the latest version in yellow. To update the antenna via the Aptus web interface please see consult the Firmware Upgrade Guide.

Categories
Technical Support, Product, VSAT, TVRO
05 October 2020
FAQ

How do I set up my i-series if I want to use it on Dish or DirecTV?

The instructions for setting up your i-series to work with a particular Satellite broadcaster, such as DIRECTV or DISH Network are included in the manual, and can also be found on the quick setup guides available for download here: Link to DIRECTV Setup, Link to Dish Network Setup. i2 with Dish Link : (Link)

Categories
Technical Support, TVRO
05 October 2020
FAQ

Can you tell me which satellite to use in a certain region for Sat TV coverage?

Generally speaking each country has their own providers of Satellite TV subscription services. Intellian antennas are designed to be able to operate in any region, and through the built in satellite library, all the local regional providers are pre-programmed based on the country. Once you have decided on which Sat TV provider to subscribe with, then setting up the antenna system is very straightforward using the Load Region menu option. This is fully explained in the product manuals and quick start guides that come with the products.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Is HD TV available on all Intellian Sat TV systems?

To receive HD, a suitable HD receiver and subscription has to be used to get HD channels. The Intellian i-Series will display HD programming when available on Ku-band Satellite signals.
In the US, Dish Network sends HD programing on Ku-band and the i-Series will display HD, a MIM is required for operation with Dish. DIRECTV operate on a dual band system and to receive HD, Intellian dual band antennas, the s6HD or s80HD/s100HD WorldView must be used.
The i-Series will work with DIRECTV, but will only receives SD channels. Bell TV in Canada delivers HD programing on Ku-band, therefore the i-Series will display HD channels. For optimum viewing, an Intellian MIM should be used to automate satellite channel switching.
In European locations, most satellite TV providers transmit HD channels on Ku-band and so the Intellian i-Series should receive HD channels if they are provided as part of the subscription package. Please check with your local dealer.

Categories
Technical Support, Product, TVRO
05 October 2020
FAQ

Can I connect multiple TV screens to one Satellite TV antenna system?

One Intellian Sat TV system can be connected to multiple TV screens. Each TV will need to have its own Satellite receiver (set top box) and be connected to the antenna system using either a multi-switch or Intellian MIM.
This will allow viewers to watch separate channels on each TV screen. Note: if you only have one receiver, all of the TV screens will show the same programming.

Categories
Product, TVRO
05 October 2020
FAQ

Why do I lose some channels while I can still watch other channels?

An individual satellite has many different transponders, all broadcasting different programs. These transponders typically have different power levels. Signals from the weaker transponders will frequently be lost before the signals from the stronger ones, especially at the fringes of the coverage footprint. This also applies to local channels that are based on your billing Zip code. Once you sail out of your local region you will lose the locals channels, like the news and weather, but you will still be able to receive the national channels.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I change satellite settings on the t110W and t130W?

To change settings on the antenna you will need to enter the Setup Mode using the menu and directional arrows on the keypad. Once in Setup the Installation menu option allows you to set your region and satellite based on your country of operation. For a complete description, please download the manual and refer to page 50.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Where can I find the weight and shipping dimensions for Intellian products?

The Packaged weight and dimensions are available here: Link to Shipping weights and dims doc. Link

Categories
Sales, Others
05 October 2020
FAQ

What is the typical lead time on Intellian Satellite TV systems?

Intellian TVRO systems are stocked in our three global logistics centers and are generally available for rapid dispatch. PLease contact your local sales account manager for exact details.

Categories
Sales, Others
05 October 2020
FAQ

Where can I find your official warranty statements?

Intellian offers an industry leading Warranty Policy. The latest warranty information can be found here. Please make sure these are the latest approved and published policies.

Categories
Technical Support, Sales, Others, VSAT, TVRO
05 October 2020
FAQ

Does Intellian offer Dual VSAT Systems?

Intellian offers the option for Dual VSAT antennas on all the VSAT antennas. With the older units this can be accomplished using an external VSAT Mediator Link. However, the new NX-series of VSAT products and GX terminals the mediator is built in to the Antenna Control Unit, reducing the external components required to operate a dual VSAT system to help mitigate blockage and provide redundancy.

Categories
Sales, VSAT
05 October 2020
FAQ

If I decide to change my currently installed antenna, what is the process for decommissioning?

Removing an old antenna and replacing it with an Intellian system is straight forward, as the mounting arrangements are generally the same for similar sized antennas. You can also use the old cables if they are in good condition and are the correct type. Your local Intellian dealer can provide detailed information on how this can be done and how quickly it can be achieved.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Does Intellian offer Dual TVRO Systems?

Intellian TVRO systems can use the TVRO mediator to provide changeover from one antenna to another to mitigate blockage caused by obstructions onboard. All TVRO series can be operated with a Dual System Mediator, however with the s6HD please specify when ordering as the s6HD requires configuration for dual station operation.

Categories
Sales, TVRO
05 October 2020
FAQ

How do I order parts if I am not a dealer?

If you are not a dealer, please use the following link (Link) to find a local dealer to order the parts that you require.

Categories
Sales, Spares Accessories, Others
05 October 2020
FAQ

I am a dealer and would like to have access to the partner portal.

Please complete the registration form, once your application has been reviewed you will receive an email with login information.

Categories
Sales, Others
05 October 2020
FAQ

My antenna is under warranty, how do I order parts?

Raise a case with our support team and provide them with the details on where you want the part to be delivered. They will then raise an RMA and hand it over to the logistics team for part dispatch. A PO will be required but once we have the faulty part returned to Intellian, it will tested and once tested faulty the a credit will be issued.

Categories
Sales, Spares Accessories
05 October 2020
FAQ

Does Intellian offer bundle pricing or other promotions?

Bundled product promotions are consistently provided throughout the year. Intellian also offers seasonal promotions.

Categories
Sales, Others
05 October 2020
FAQ

Can Intellian supply ancillary equipment (cables, connectors, switches etc.)?

Typically we do not provide ancillary or 3rd party equipment such as interconnection cables, switches, modems etc, however in special cases we can accommodate below deck rack equipment requirements. Please contact your local sales department to discuss your project requirement.

Categories
Sales, Spares Accessories, Others
05 October 2020
FAQ

Does Intellian offer a Total Cost of Ownership Document?

Intellian antenna systems offer the lowest total cost of ownership, and we will be pleased to provide you with the information. Please contact your local Intellian account manager.

Categories
Sales, Others
05 October 2020
FAQ

Does Intellian offer bundle pricing or other promotions?

Bundled product promotions are consistently provided throughout the year. Intellian also offers seasonal promotions.

Categories
Sales, Others
05 October 2020
FAQ

What is the recommended RF cable type by distance for the v130G?

The v130G uses 50ohm RF Cables. (Distance: up to 35m: LMR300, up to 100m: LMR600, up to 200m: LMR1200). The v130G can also operate with the Intellian Fiber Link system and is recommended for longer cable runs. The NX-series of VSAT systems will only require a single RF cable with the same distance limits.

Categories
Product, VSAT
05 October 2020
FAQ

Are Intellian products and spare parts RoHS compliant?

Yes, All Intellian products and spare parts are RoHS Compliant.

Categories
Product, Spares Accessories, VSAT, TVRO
05 October 2020
FAQ

What is the wind load specification for the v100NX/v100GX/v100?

The wind load for the v100NX/v100GX/v100 is 100 knots (Operational)

Categories
Product, VSAT
05 October 2020
FAQ

What is the best storage environment for VSAT and large TVRO crates prior to installation?

The VSAT systems and larger TVRO systems are supplied in simple to open wooden crates, with quick to remove spring clips. These crates also have ventilation panels to allow air to flow into the crates to help stop mold. It is best to store these complete systems in a dry covered area, the location temperature should not exceed 20°C with a humidity of less than 60%. Do not cover the ventilation panels as that can stop airflow and cause moisture build up inside the crate.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

What differentiates you from your competitors TVRO antennas?

Intellian Satellite TV antennas use patented technology to make your viewing experience the best it can be. The Wide Range Search quickly finds the satellite signal, and the Dynamic Beam Tilting tracks the satellite signal using a spinning sub reflector, making the antenna much quieter in operation with less wear on the system. We also offer a 3 year warranty on the Satellite TV systems.

Categories
Sales, TVRO
05 October 2020
FAQ

Where can I find a dealer location on Intellian's website?

Please click on the Where To Buy link to find a dealer in your area. This searchable dealer locator will list dealers in your region and what products or services they offer.

Categories
Sales, Others
05 October 2020
FAQ

How do I choose an airtime provider?

Intellian does not supply VSAT airtime, but Intellian antennas work with all major airtime providers. We recommend that you contact your local sales account manager who can advise on the available providers in your region that would be best suited to your specific requirements.

Categories
Sales, VSAT
05 October 2020
FAQ

Can I paint the radome to match my yacht color scheme?

It is possible to paint radomes to match a boat color scheme, but this can have an adverse effect on the performance of the antenna. Please consult your local dealer.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Does Intellian have X Band products?

Intellian does not offer X-band antenna products currently. We are always developing new products and so please contact your local Sales or Product Manager who will be able to discuss your requirements and advise on upcoming options.

Categories
Product, Others
05 October 2020
FAQ

What warranty does Intellian offer with its systems?

Intellian offers an industry leading 3 year parts and 2 year labour on all our satellite TV systems and VSAT systems with some exceptions. Please see the product details page for details and product specific warranty information.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

What i-Series antenna is best suited for my small yacht?

The correct antenna is selected based on your cruising area and how far offshore you may sail. The Satellite TV broadcasters send their signal to land, and so as a boater we are using the fringe of the signal. The further offshore we go, the weaker the signal and therefore the larger the antenna needs to be. Go to the following link (www.intelliantech.com/Sattv/i-Series), you will be able to use the coverage selector to identify which antenna size is best suited for you. It will also show the coverage for the satellite TV service. You should also consult with your local dealer for local advice.

Categories
Product, Sales, TVRO
05 October 2020
FAQ

I am in America but the satellite on the display is for Europe.

The factory default is to show a European satellite, so you will have to "Load Region" using the Setup Mode. Reload the region file for your continent, select the region and service provider. The system will then program the correct satellites to look for.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Is periodic maintenance needed for Intellian Sat TV Systems?

There is no specific periodic maintenance required for Intellian Sat TV systems. However, Intellian does suggests that you rinse the radome once a month to remove any dirt or grime and visually inspect connections, cables and components every year.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Where do I go for spare parts or technical service?

Intellian provides worldwide technical support through our dealer network. Please visit the Where to Buy page to find the location of the dealer nearest you.

Categories
Technical Support, Spares Accessories
05 October 2020
FAQ

Are Intellian VSAT products Anatel Type Approved for use in Brazil?

Yes, Intellian VSAT products are Anatel type approved. Please contact your local sales representative for copies of the current Anatel Certificates. Certification labels are also placed on all certified antenna systems.

Categories
Product, VSAT
05 October 2020
FAQ

How do I setup the antenna parameters with a PC program?

Instead of pressing buttons on the Antenna Control Unit (ACU) to setup the satellite tracking parameters, you can just use Intellian Aptus PC program with your PC or Laptop to control the system. Please contact your local dealer for a link to download Aptus PC. If you are a dealer or partner, you can download the Aptus PC software in the Partner Portal.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

What are the terms and conditions of the Intellian limited warranty?

Intellian offers an industry leading product warranty. You can read the full warranty details on the Support page under the Warranty Section.

Categories
Technical Support, Product, VSAT, TVRO
05 October 2020
FAQ

Where can I find the radome outline drawings?

The Radome outline drawings are made available along with the System Diagrams, on the product Datasheets and also at the bottom of each product's web page. CAD drawings are also available, please contact your local sales representative to receive CAD files.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Is there a buffer for the antenna operating temperature range?

Normally up to +10 deg C. is okay. For the v150 and v240 antennas, however, if the system is exposed to high temperatures, Intellian recommends installing air conditioning, and both antenna systems have AC options.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Do the v-Series VSAT Systems have a low radar cross section?

The v-Series VSAT systems does not have a low radar cross section.

Categories
Product, VSAT
05 October 2020
FAQ

What is the recommended power cable size by distance for the Above Deck Unit (ADU) of the v100GX / v100 VSAT systems?

The recommended power cable for the ADU is 2.62mm2 (AWG13: for cable length less than 100m) and 4.17mm2 (AWG11: Cable length is more than 100m and less than 200m). Ring Size: Ø 4.3 , Fork Size: Ø 3

Categories
Product, Spares Accessories, VSAT
05 October 2020
FAQ

Where can I find a user manual or brochure for an Intellian product?

Downloadable PDF versions of brochures and datasheets are located on the specific product page in the products section of our website. Additional VSAT manuals are available to partners in the Intellian Partner Portal.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

What are the specifications of the Intellian i4?

Complete Intellian i4 specifications, including power requirements, dimensions, and instructions for operation, can be found in the Intellian i4 product brochure and user manual, all of which are available to download in PDF format on the individual product page.

Categories
Product, TVRO
05 October 2020
FAQ

How can I become an Intellian Product Reseller?

Please complete the form to request information on becoming an Intellian reseller.

Categories
Sales, Others
05 October 2020
FAQ

Where are Intellian spare parts stocked?

Intellian spare parts are stocked at each of our Global Logistic Centers; Seoul-Korea, Shanghai, Singapore, Rotterdam-NL, Irvine-California. In addition many of our support partners stock Intellian Spare Part kits and the location of our support partners can be found by clicking on the "where to buy" button.

Categories
Sales, Spares Accessories, Others
05 October 2020
FAQ

How can I obtain the intellian MSRP Pricing?

Intellian publishes the MSRP price list and provides these to authorized Intellian resellers. You may contact one of our resellers listed on the Where To Buy page to receive MSRP pricing. For our reseller partners, MSRP pricing is available on our partner portal. Intellian resellers receive the MSRP pricing in the annual pricing & program guide distributed each year.

Categories
Sales, Others
05 October 2020
FAQ

What is the NMEA heading sentence Intellian antennas support?

Intellian systems support NMEA2000 and NMEA0183 for heading input. The system expects to see the following sentences for heading information, NMEA0183, HDT, or HDM if HDT not available and for NMEA2000 PGN 127250 Vessel Heading.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

We want to add our company details to the 'where to buy' section of the website, how do we arrange this?

The Where To Buy section of our website includes our active reseller partners. Please contact your regional sales manager to discuss being added to our website listing.

Categories
Marketing, Others
05 October 2020
FAQ

Channels on the 110° satellite are not viewable, but others remain okay. What should I do?

There are a number of common issues that can cause some channels on the 110° satellite to not be viewable, while others remain okay.
Satellite signal blocked: Satellite signals can be blocked or degraded by buildings, other vessels or equipment on the vessel itself. Check to see if the antenna has a clear view of the sky. Refer to your owner’s manual, to make certain that the Intellian unit is in the optimal location.
Outside of satellite coverage zone: Since the 110° satellite transmits TV signals at a lower power than the 129° and 119° satellites, the coverage area of the 110° satellite differs slightly from the coverage area of the 129° and 119° satellites. As you approach edge areas of the 110° satellite, signal quality will degrade while the signal quality of the 129° and 119° satellites may remain relatively strong.
Weak satellite signal: Just like radio stations, some satellite TV channels are transmitted at a stronger signal level than others. If you're unable to receive a clear signal on one channel, try switching to a stronger channel. Weaker channels are more vulnerable to interference, such as rain or snow.

Categories
Technical Support, TVRO
05 October 2020
FAQ

What is the difference between an Intellian i6 and the Intellian i6P?

Both the Intellian i6 and i6P are powered by Intellian’s proprietary Wide Range Search (WRS) algorithms, Dynamic Beam Tilting (DBT) technology and automatic skew adjusting system. The Intellian i6P has an Auto-skew function that is recommended for vessels using linear satellite TV signals, such as used in Europe, South America and Asia, which allows the Intellian i6P to outperform any similarly sized antenna on the market when traveling greater distances. For North America, the satellite TV signals are Circular and the "P" versions are not required.

Categories
Technical Support, TVRO
05 October 2020
FAQ

We require an image of your product for promotional purposes, how we acquire a product photo?

On each product page you will find a link to download a set of product images. For our partners, images can also be found in the Intellian Partner Portal. If you have trouble finding what you are looking for, please contact the regional marketing team.

Categories
Marketing, Others
05 October 2020
FAQ

What are the ac/dc power requirements for an i-Series antenna, ACU or MIM?

The ACU requires 9-30 volts DC. The antenna receives its power via the RF1 cable between the ACU and antenna. The MIM requires a 12 DC input and is supplied with a cable to connect direct to the ACU to be powered, it is also supplied with its own AC/DC adaptor.

Categories
Technical Support, TVRO
05 October 2020
FAQ

What events are you taking part in this year?

Intellian lists all events we will attend on our homepage. We also host online events and webinars throughout the year. Those activities will be posted on the website and on Intellian social media channels.

Categories
Marketing, Others
05 October 2020
FAQ

What events are you hosting this year?

Intellian hosts a number of webinars and online events throughout the year.

Categories
Marketing, Others
05 October 2020
FAQ

Are you hosting any seminars this year?

Intellian will be hosting a number of webinars in place of seminars.

Categories
Marketing, Others
05 October 2020
FAQ

Who is the main marketing contact in my region?

Intellian has regional marketing contacts in Europe, the Americas and Korea. You may contact us using the information request form, or by calling the regional office closest to you. Contact details are listed on the Contact Us page.

Categories
Marketing, Others
05 October 2020
FAQ

What is the process for warranty cases?

Intellian offers a comprehensive warranty on all their products. You may also contact your local Technical Support for help and guidance.

Categories
Product, Others
05 October 2020
FAQ

What warranty information do we have to send Intellian?

Please complete the included Warranty Card (US) or register your product using the Warranty Registration form

Categories
Product, Others
05 October 2020
FAQ

Who do we send our warranty information to?

You can register your system here for warranty purposes

Categories
Product, Others
05 October 2020
FAQ

Is there anything I need to do to activate my warranty?

Intellian warranty is based on the purchase date of the equipment. You can register your product. Please see the complete warranty information on our Warranty page.

Categories
Product, Others
05 October 2020
FAQ

Can I cut the connectors off the coax cables provided by Intellian to ease the cable pull and install my own connectors?

Intellian understands that pulling cables can be difficult with the connectors installed. If you need to cut those connectors off to complete the installation we recommend that you utilize RG6 watertight compression connectors and crimping tool to ensure that the connectors are securely installed.

Categories
Technical Support, Spares Accessories, VSAT, TVRO
05 October 2020
FAQ

What is the maximum cable length I can have between the antenna and ACU on an i-Series system?

Intellian recommends a maximum of 100 feet with RG6 type cable.

Categories
Technical Support, TVRO
05 October 2020
FAQ

What is the “dish type” and “switch type” that I select on my DirecTV receiver?

For the i-series antennas: Tracking DTV101 Dish Type: 01: 18” Round

Categories
Technical Support, TVRO
05 October 2020
FAQ

What multi-switch does Intellian recommend if I have multiple receivers on my boat?

Any active multi-switch from a reputable electronics provider is recommended.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Can I receive HD channels with the i-Series antennas?

The i-Series antenna is a Ku band antenna that is able to track and receive Dish TV, Bell TV (Canadian), DirecTV Latin America, European and Sky Mexico’s SD and HD channels. For DIRECTV the i-Series will only show the SD channels, for HD DIRECTV the s-Series is required to be able to track all three DIRECTV satellites for HD and UHD programming.

Categories
Technical Support, TVRO
05 October 2020
FAQ

When and why is the Intellian MIM needed?

The Intellian MIM is a four port multi-switch Intellian developed for Dish TV and Bell TV Networks. With the Dish TV MIM your i-Series antenna will be able to automatically switch between the three satellites Dish TV uses to broadcast, based on channel selection. It also enables the receiver to successfully complete the "check switch" function.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Do I need to install the GPS connection to the ACU?

In most installations, the GPS connection to the ACU is not required. i-, s- and t-Series systems have GPS antenna built in (with the exception of the i2 which does not have the GPS built in).

Categories
Technical Support, TVRO
05 October 2020
FAQ

Do I need a special Dish TV or DIRECTV receiver to work with an Intellian antenna?

The standard Dish TV and DIRECTV receivers will successfully work with an Intellian antenna. We recommend the Dish Network model ViP211 HDTV receiver, and for DIRECTV the H24 or H25 receivers should be used. Please not that many older SD only receivers are no longer supported.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How about 4K or UHD programming?

DIRECTV 4K or UHD programming is supported when using the intellian s-Series. A suitable 4K receiver, subscription and compatible TV is required.

Categories
Technical Support, TVRO
05 October 2020
FAQ

If I install an Intellian system myself, is the warranty still valid?

If you have a problem with an antenna system that you installed yourself we recommend that you first have an Authorized Intellian Dealer look at your system to determine if the issue is with the equipment or the installation. They can then assist with the warranty process if there is a failure in the equipment. However if the failure is due to the installation the system and installation are not covered under warranty. Authorized dealers can be found using the Where To Buy page

Categories
Technical Support, Others
05 October 2020
FAQ

What parts are needed to convert a v100 w/ Mini NJRC 8W BUC to a Mini NJRC 16W BUC?

To upgrade the BUC power from 8W to 16W you'll need to have a 16W BUC Power Supply (P/N: V3-8054) and a Mini NJRC 16W BUC (P/N: V1-2213).

Categories
Technical Support, VSAT
05 October 2020
FAQ

Are t-Series TVRO systems in compliance with EN60950?

Yes, all t-Series TVRO systems are EN 60945 and EN 60950 compliant.

Categories
Product, TVRO
05 October 2020
FAQ

Where can I find the System Diagram for Intellian products?

You can find the System Diagram at the bottom of each product page. System diagrams are also available on the individual product Data Sheets available in the "Download" section for each product.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Which products are compatible with the Dual TVRO Mediator to solve blockage issues onboard a vessel?

To install dual TVRO antennas a mediator must be used to switch between the antennas. When one antenna may have its signal blocked by part of the vessel, the system will switch over to the unblocked antenna. All Intellian Satellite TV systems can be used with the Intellian Dual TVRO Mediator.

Categories
Product, TVRO
05 October 2020
FAQ

Can I receive HD channels with i-Series antennas?

The i-Series systems are Ku-band stabilized antenna systems that are able to track and receive DIRECTV SD channels, Dish TV Network, Bell TV (Canadian), DIRECTV Latin America, and Sky Mexico’s SD and HD channels.
In other regions, such as in Europe, that transmit HD programing on Ku-band, the i-Series can receive these, as long as they are included in the users subscription package from the Sat TV provider and the system is within the satellite signal footprint. For DIRECTV HD programing the s-Series of products should be used to be able to view channels in HD and 4K.

Categories
Product, TVRO
05 October 2020
FAQ

What is the power consumption of the air conditioner supplied with the 2.4m antenna of the v240 series?

This is dependant on which air conditioning unit is installed, but generally 2.65KW on average and max. 3.3KW and both versions require 220VAC to operate.

Categories
Product, VSAT
05 October 2020
FAQ

Who is Intellian's main Media and PR contact?

Intellian has regional Media and PR contacts in Europe, the Americas and Korea. You may contact us using the information request form, or by calling the regional office closest to you. Contact details are listed on the Contact Us page.

Categories
Marketing, Others
05 October 2020
FAQ

How long does an antenna installation take on average??

This depends on a number of factors onboard the vessel more than the equipment being installed. For a smaller satellite TV system it can be installed in about one full day depending on the complexity of the antenna mount and cable run. For a satellite communication systems this again depends on the mounting of the antenna and the cable runs. This could take two to three days, however once the cables are installed and the system mounted the Aptus NX software Installation Wizard guides the installer through an installation and this can be completed very quickly.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Where is Intellian's warehouse?

Intellian has three main logistics centers that stock products. Irvine, CA for the Americas, Rotterdam, NL for Europe, Middle East and Africa and Seoul, Korea for the Asia region. We also stock some products in our facility in Singapore and in China.

Categories
Sales, Others
05 October 2020
FAQ

Can I order customized products? (performance, design)

Please contact your local Intellian sales contact to discuss custom products.

Categories
Sales, VSAT, TVRO
05 October 2020
FAQ

What is the country of origin for Intellian products?

All Intellian products are designed and built in South Korea and therefore the Country of Origin is South Korea.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

What is the smallest size of VSAT antenna?

The smallest VSAT antenna that Intellian provides is the Intellian v60E. This is a compact 60cm VSAT antenna. Please see the VSAT product pages for comparison details.

Categories
Product, Sales, VSAT
05 October 2020
FAQ

I need a maritime TV antenna but I don't know which one is right for me. What would you recommend?

The Intellian satellite TV antenna should be selected based on coverage area and the region of operation. This combined with the size and type of vessel is the best way to choose which antenna to select. Contact your local authorized Intellian dealer and they can make a personal recommendation for you based on your normal sailing area and the TV service you wish to subscribe to.

Categories
Product, Sales, TVRO
05 October 2020
FAQ

If my antenna is damaged by lightning, what should I do?

If your antenna system is struck by lightning it most likely will be damaged beyond repair. This can also occur if lightning strikes somewhere on the vessel and not the antenna directly. The sensitive electronics in all systems onboard is often completely beyond repair and we recommend that it be replaced. The charge can also be so great that it can destroy the RF cables, and it would be recommended to also replace those as well. Please consult with your local Intellian dealer.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

If my radome is damaged, can I keep using it without repair? Does Intellian offer repair service for damaged radomes?

Intellian radomes are built using very special composite materials to allow the satellite signals to pass through and so cannot generally be repaired. Intellian does offer replacement domes, or complete replacement radomes. We recommend that any damaged domes are replaced quickly so as to not let water get inside the antenna.

Categories
Technical Support, Sales, VSAT, TVRO
05 October 2020
FAQ

If water leaked into my antenna, what is immediate action that I need to take?

It is never good to mix water and sensitive electronics, however Intellian radomes are designed with drain holes to allow small amounts of water out, combined with internal protection of the components. You should temporarily patch any holes in the dome and when possible have a local service dealer service and replace the damaged radome, making sure any remaining moisture is removed.

Categories
Technical Support, VSAT, TVRO
05 October 2020
FAQ

Where can I find information of product EOL?

When an Intellian product is EOL and no longer supplied a Product Bulletin is sent out and posted to the Intellian Partner Portal. For product specific information you may contact the local product management contact in your region.

Categories
Product, VSAT, TVRO
05 October 2020
FAQ

Why did my Satellite TV system fail to acquire a lock on the correct satellite?

There may be blockage of the satellite signal from a nearby structure or you may have travelled outside the coverage area for that particular model and service. Occasionally the satellite operator may have made a change within the satellite and we will need to update the firmware in the ACU to match the satellite changes.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I find my antenna's serial number ?

The antenna serial number is inside the antenna next to the antenna model. It is also on the box, in the manual and on the outside of the radome. You can also see the serial number using the front panel display on the ACU, please consult the manual to do this.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Does Intellian?have an antenna system for land or air?

Intellian is constantly developing new antenna systems for use across all markets so please check back to find the latest information on our new systems for users beyond marine.

Categories
Product, Others, VSAT
05 October 2020
FAQ

Why does the ACU show "Communication Error" on the display?

Communication error message means there is no communication between the antenna and the antenna control unit. Check the antenna cable and connections to make sure they are tight and the cable is not damaged. If the error still shows then please contact a local dealer for technical support assistance.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Why is the TV not showing a program when the satellite antenna is tracking a satellite with a strong signal level?

Please check the NID lock in the ACU indicated by a solid "DOT" on the display. If NID is not locked, you may have started to track the wrong satellite. In this scenario, wait until the TVRO goes to search mode and acquires the correct satellite. If you have a lock it could also be the channel you are looking at may not be available, try changing the channel.

Categories
Technical Support, TVRO
05 October 2020
FAQ

Can I use your logo for promotional activities?

Please contact the Intellian Marketing in your region to get the latest Intellian logo files and brand guidelines. They will also be able to assist with approval for use in your promotion.

Categories
Marketing, Others
05 October 2020
FAQ

We would like to create a joint social media campaign together. Who do I contact to discuss further?

Please contact the Intellian Marketing contact in your region to discuss COOP marketing opportunities.

Categories
Marketing, Others
05 October 2020
FAQ

We would like to display one of your products at a show. How do we arrange this?

Please contact the Intellian Marketing contact in your region to discuss show and exhibition display products.

Categories
Marketing, Others
05 October 2020
FAQ

Does Intellian have a website for online purchase??Can?I buy antenna systems online?

Intellian does not offer direct online sales. A number of our resellers offer Satellite TV systems for online purchase. Please see the Where To Buy section of our website.

Categories
Sales, Others
05 October 2020
FAQ

How can I watch a High-Definition (HD) broadcasting on my TV?

You must have a high-definition television set and an activated HD receiver in order to receive and watch high-definition programming. Intellian HD Antenna Control Unit (ACU) enables you to have a full range of HD broadcasting if available from the TV provider. In the US, DIRECTV in HD requires an s-Series antenna to resolve the Ka-band signals. All other providers use Ku- band for HD services.

Categories
Technical Support, TVRO
05 October 2020
FAQ

How do I activate a satellite receiver?

Activating and using your Intellian satellite TV system is almost same as your home satellite TV service. You should contact your local satellite TV provider.

Categories
Technical Support, TVRO
05 October 2020
FAQ

We would like to create a joint advertising campaign with Intellian, who do I contact to discuss further?

Please contact the Intellian Marketing contact in your region to discuss COOP marketing opportunities.

Categories
Marketing, Others
05 October 2020
FAQ

If I want to stream video, how big of an antenna should I buy?

Steaming services require a certain bandwidth to provide the capacity to stream content. This depends on the service and also the number of users onboard wanting to stream. Lower resolutions can be streamed with a 1mbs service, but this is dependent on the airtime provider.
All Intellian VSAT antennas can provide the bandwidth to stream, however using a larger antenna generally reduces the cost of the airtime. We recommend you contact your local airtime provider to discuss your bandwidth requirements, but you can be assured that all Intellian VSAT antennas can stream content.

Categories
Product, Sales, Others, VSAT
05 October 2020
Coverage Maps

Agila2 Coverage Map

Categories
TVRO
File Type
pdf
File Size
1481 KB
05 October 2020
Coverage Maps

Astra 1KR Coverage Map

Categories
TVRO
File Type
jpg
File Size
244 KB
05 October 2020
Coverage Maps

Astra 2A North Beam Coverage Map

Categories
TVRO
File Type
pdf
File Size
1834 KB
05 October 2020
Coverage Maps

Astra 2A South Beam Coverage Map

Categories
TVRO
File Type
pdf
File Size
1630 KB
05 October 2020
Coverage Maps

Astra 2E 2F 2G Coverage Map Coverage Map

Categories
TVRO
File Type
jpg
File Size
255 KB
05 October 2020
Coverage Maps

Astra 2E 2F 2G UK Coverage Map

Categories
TVRO
File Type
jpg
File Size
262 KB
05 October 2020
Coverage Maps

Astra 3B Coverage Map

Categories
TVRO
File Type
jpg
File Size
228 KB
05 October 2020
Coverage Maps

Astra 4A Coverage Map

Categories
TVRO
File Type
jpg
File Size
267 KB
05 October 2020
Coverage Maps

Badr 6 - Eutelsat 26E Coverage Map

Categories
TVRO
File Type
jpg
File Size
291 KB
05 October 2020
Coverage Maps

Bell TV Canada Coverage Map

Categories
TVRO
File Type
jpg
File Size
232 KB
05 October 2020
Coverage Maps

Brazil Claro Coverage Map

Categories
TVRO
File Type
jpg
File Size
186 KB
05 October 2020
Coverage Maps

Chinasat 9 Coverage Map

Categories
TVRO
File Type
jpg
File Size
214 KB
05 October 2020
Coverage Maps

DIRECTV Coverage Map (Latin America)

Categories
TVRO
File Type
jpg
File Size
254 KB
05 October 2020
Coverage Maps

DIRECTV Coverage Map (North America) 1

Categories
TVRO
File Type
jpg
File Size
282 KB
05 October 2020
Coverage Maps

DIRECTV Coverage Map (North America) 2

Categories
TVRO
File Type
jpg
File Size
270 KB
05 October 2020
Coverage Maps

DIRECTV Coverage Map (North America) 3

Categories
TVRO
File Type
jpg
File Size
258 KB
05 October 2020
Coverage Maps

DIRECTV Coverage Map KA-Band (North America)

Categories
TVRO
File Type
jpg
File Size
215 KB
05 October 2020
Coverage Maps

DIRECTV Latin America Coverage Map

Categories
TVRO
File Type
pdf
File Size
1431 KB
05 October 2020
Coverage Maps

DIRECTV North America Coverage Map

Categories
TVRO
File Type
pdf
File Size
8692 KB
05 October 2020
Coverage Maps

DISH Network North America Coverage Map

Categories
TVRO
File Type
pdf
File Size
8609 KB
05 October 2020
Coverage Maps

DishNetwork 1 Coverage Map

Categories
TVRO
File Type
jpg
File Size
158 KB
05 October 2020
Coverage Maps

DishNetwork 2 Coverage Map

Categories
TVRO
File Type
jpg
File Size
148 KB
05 October 2020
Coverage Maps

DishNetwork 3 Coverage Map

Categories
TVRO
File Type
jpg
File Size
260 KB
05 October 2020
Coverage Maps

Eutelsat 16A Coverage Map

Categories
TVRO
File Type
jpg
File Size
288 KB
05 October 2020
Coverage Maps

Eutelsat 7C Coverage Map (West)

Categories
TVRO
File Type
jpg
File Size
269 KB
05 October 2020
Coverage Maps

Eutelsat 7W Coverage Map

Categories
TVRO
File Type
jpg
File Size
283 KB
05 October 2020
Coverage Maps

Far East (Telstar) Coverage Map

Categories
TVRO
File Type
jpg
File Size
245 KB
05 October 2020
Coverage Maps

Global TVRO Coverage Map

Categories
TVRO
File Type
zip
File Size
0 KB
05 October 2020
Coverage Maps

Hispasat Coverage Map

Categories
TVRO
File Type
jpg
File Size
291 KB
05 October 2020
Coverage Maps

Hotbird Coverage Map

Categories
TVRO
File Type
jpg
File Size
305 KB
05 October 2020
Coverage Maps

Koreasat (Skylife) Coverage Map

Categories
TVRO
File Type
jpg
File Size
176 KB
05 October 2020
Coverage Maps

Measat 3B Coverage Map

Categories
TVRO
File Type
jpg
File Size
227 KB
05 October 2020
Coverage Maps

Measat_3_Coverage_Map

Categories
TVRO
File Type
pdf
File Size
2954 KB
05 October 2020
Coverage Maps

Nilesat 102 Coverage Map

Categories
TVRO
File Type
pdf
File Size
1388 KB
05 October 2020
Coverage Maps

Optus C1 Coverage Map

Categories
TVRO
File Type
jpg
File Size
222 KB
05 October 2020
Coverage Maps

Optus D1 Coverage Map

Categories
TVRO
File Type
jpg
File Size
223 KB
05 October 2020
Coverage Maps

s100HD Coverage Map

Categories
TVRO
File Type
pdf
File Size
1511 KB
05 October 2020
Coverage Maps

Shaw Direct Coverage Map

Categories
TVRO
File Type
png
File Size
301 KB
05 October 2020
Coverage Maps

Sirius2 Coverage Map

Categories
TVRO
File Type
pdf
File Size
2588 KB
05 October 2020
Coverage Maps

Sky Brazil Coverage Map

Categories
TVRO
File Type
jpg
File Size
224 KB
05 October 2020
Coverage Maps

Sky Mexico Coverage Map

Categories
TVRO
File Type
jpg
File Size
206 KB
05 October 2020
Coverage Maps

Telstar 18 Coverage Map

Categories
TVRO
File Type
jpg
File Size
245 KB
05 October 2020
Coverage Maps

Thor5 Coverage Map

Categories
TVRO
File Type
jpg
File Size
228 KB
05 October 2020
Product Datasheet

Aptus Datasheet

Categories
Software / App
File Type
pdf
File Size
228 KB
05 October 2020
Product Datasheet

C200L Datasheet

Categories
File Type
pdf
File Size
3892 KB
05 October 2020
Product Datasheet

C700 Datasheet

Categories
Others
File Type
pdf
File Size
1043 KB
05 October 2020
Product Datasheet

C700 Datasheet - Chinese Version

Categories
File Type
pdf
File Size
1175 KB
05 October 2020
Product Datasheet

C700 Datasheet - Japanese Version

Categories
File Type
pdf
File Size
3149 KB
05 October 2020
Product Datasheet

C700 Datasheet - Korean Version

Categories
File Type
pdf
File Size
1076 KB
05 October 2020
Product Datasheet

C700 Winterized Version Datasheet

Categories
File Type
pdf
File Size
978 KB
05 October 2020
Product Datasheet

Dual VSAT Mediator Datasheet

Categories
Spares / Accessories
File Type
pdf
File Size
412 KB
05 October 2020
Product Datasheet

FB250 Datasheet

Categories
Others
File Type
pdf
File Size
741 KB
05 October 2020
Product Datasheet

FB250 Datasheet - Korean Version

Categories
File Type
pdf
File Size
763 KB
05 October 2020
Product Datasheet

FB500 Datasheet

Categories
Others
File Type
pdf
File Size
438 KB
05 October 2020
Product Datasheet

FB500 Datasheet - Japanese Version

Categories
File Type
pdf
File Size
838 KB
05 October 2020
Product Datasheet

FB500 F4 Datasheet - Global Version

Categories
File Type
pdf
File Size
703 KB
05 October 2020
Product Datasheet

FB500 F4 Datasheet - Korean Version

Categories
File Type
pdf
File Size
725 KB
05 October 2020
Product Datasheet

FB500R_Datasheet

Categories
Others
File Type
pdf
File Size
727 KB
05 October 2020
Product Datasheet

Fiber Link Datasheet

Categories
Spares / Accessories
File Type
pdf
File Size
1671 KB
05 October 2020
Product Datasheet

FleetOne Datasheet

Categories
VSAT
File Type
pdf
File Size
576 KB
05 October 2020
Product Datasheet

FleetOne Datasheet - Korean Version

Categories
File Type
pdf
File Size
597 KB
05 October 2020
Product Datasheet

Global PLL LNB Datasheet

Categories
Others
File Type
pdf
File Size
122 KB
05 October 2020
Product Datasheet

GX Mediator Datasheet

Categories
Spares / Accessories
File Type
pdf
File Size
585 KB
05 October 2020
Product Datasheet

GX100 Datasheet

Categories
VSAT
File Type
pdf
File Size
639 KB
05 October 2020
Product Datasheet

GX100 Datasheet - Chinese Version

Categories
VSAT
File Type
pdf
File Size
650 KB
05 October 2020
Product Datasheet

GX100HP Datasheet

Categories
VSAT
File Type
pdf
File Size
4711 KB
05 October 2020
Product Datasheet

GX100NX 2 Datasheet

Categories
File Type
pdf
File Size
613 KB
05 October 2020
Product Datasheet

GX100NX Datasheet

Categories
File Type
pdf
File Size
544 KB
05 October 2020
Product Datasheet

GX100NX Datasheet - Chinese Version

Categories
File Type
pdf
File Size
801 KB
05 October 2020
Product Datasheet

GX100PM Datasheet

Categories
VSAT
File Type
pdf
File Size
790 KB
05 October 2020
Product Datasheet

GX60 Datasheet

Categories
VSAT
File Type
pdf
File Size
570 KB
05 October 2020
Product Datasheet

GX60 Datasheet - Chinese Version

Categories
VSAT
File Type
pdf
File Size
736 KB
05 October 2020
Product Datasheet

GX60HP Datasheet

Categories
File Type
pdf
File Size
1131 KB
05 October 2020
Product Datasheet

GX60NX 2 Datasheet

Categories
File Type
pdf
File Size
571 KB
05 October 2020
Product Datasheet

GX60NX Datasheet

Categories
VSAT
File Type
pdf
File Size
542 KB
05 October 2020
Product Datasheet

GX60NX Datasheet - Chinese Version

Categories
File Type
pdf
File Size
824 KB
05 October 2020
Product Datasheet

GX60NX Datasheet - Korean Version

Categories
File Type
pdf
File Size
546 KB
05 October 2020
Product Datasheet

i2 Datasheet

Categories
TVRO
File Type
pdf
File Size
642 KB
05 October 2020
Product Datasheet

i2 Datasheet - Spanish Version

Categories
File Type
pdf
File Size
365 KB
05 October 2020
Product Datasheet

i3 Datasheet

Categories
TVRO
File Type
pdf
File Size
764 KB
05 October 2020
Product Datasheet

i3 Datasheet - Spanish Version

Categories
File Type
pdf
File Size
461 KB
05 October 2020
Product Datasheet

i3L Datasheet

Categories
TVRO
File Type
pdf
File Size
817 KB
05 October 2020
Product Datasheet

i3L Datasheet - Spanish Version

Categories
File Type
pdf
File Size
466 KB
05 October 2020
Product Datasheet

i4, i4P Datasheet

Categories
TVRO
File Type
pdf
File Size
725 KB
05 October 2020
Product Datasheet

i4, i4P Datasheet - Spanish Version

Categories
File Type
pdf
File Size
465 KB
05 October 2020
Product Datasheet

i5 Datasheet

Categories
TVRO
File Type
pdf
File Size
22411 KB
05 October 2020
Product Datasheet

i5 Datasheet - Spanish Version

Categories
File Type
pdf
File Size
5529 KB
05 October 2020
Product Datasheet

i5P Datasheet

Categories
TVRO
File Type
pdf
File Size
832 KB
05 October 2020
Product Datasheet

i5P Datasheet - Spanish Version

Categories
File Type
pdf
File Size
448 KB
05 October 2020
Product Datasheet

i6, i6P Datasheet

Categories
TVRO
File Type
pdf
File Size
647 KB
05 October 2020
Product Datasheet

i6, i6P Datasheet - Spanish Version

Categories
File Type
pdf
File Size
432 KB
05 October 2020
Product Datasheet

i6PE Datasheet

Categories
TVRO
File Type
pdf
File Size
396 KB
05 October 2020
Product Datasheet

i6W Datasheet

Categories
TVRO
File Type
pdf
File Size
1080 KB
05 October 2020
Product Datasheet

i6W Datasheet - Spanish Version

Categories
File Type
pdf
File Size
829 KB
05 October 2020
Product Datasheet

i9 Datasheet - Spanish Version

Categories
File Type
pdf
File Size
3922 KB
05 October 2020
Product Datasheet

i9P Datasheet

Categories
TVRO
File Type
pdf
File Size
849 KB
05 October 2020
Product Datasheet

i9P Datasheet - Spanish Version

Categories
File Type
pdf
File Size
412 KB
05 October 2020
Product Datasheet

i9W Datasheet

Categories
TVRO
File Type
pdf
File Size
2068 KB
05 October 2020
Product Datasheet

Intellian 3 Axis TVRO Brochure 2017

Categories
TVRO
File Type
pdf
File Size
10038 KB
05 October 2020
Product Datasheet

Intellian Fiber Link TVRO and VSAT Data Sheet

Categories
VSAT, TVRO
File Type
pdf
File Size
402 KB
05 October 2020
Product Datasheet

Intellian Maritime VSAT Product Brochure 2017

Categories
VSAT
File Type
pdf
File Size
12723 KB
05 October 2020
Product Datasheet

Intelligent Mediator IM3 Datasheet

Categories
File Type
pdf
File Size
523 KB
05 October 2020
Product Datasheet

Intelligent Mediator IM8 Datasheet

Categories
VSAT
File Type
pdf
File Size
457 KB
05 October 2020
Product Datasheet

LP100 Datasheet

Categories
VSAT
File Type
pdf
File Size
869 KB
05 October 2020
Product Datasheet

LP100 Datasheet - Korean Version

Categories
File Type
pdf
File Size
1126 KB
05 October 2020
Product Datasheet

MIM Datasheet

Categories
TVRO, Spares / Accessories
File Type
pdf
File Size
510 KB
05 October 2020
Product Datasheet

mP85NX Datasheet

Categories
File Type
pdf
File Size
487 KB
05 October 2020
Product Datasheet

NEW DUAL TVRO MEDIATOR Datasheet

Categories
File Type
pdf
File Size
960 KB
05 October 2020
Product Datasheet

New t-Series Datasheets

Categories
File Type
zip
File Size
1192 KB
05 October 2020
Product Datasheet

s100HD Datasheet

Categories
TVRO
File Type
pdf
File Size
1152 KB
05 October 2020
Product Datasheet

s100N Datasheet

Categories
File Type
pdf
File Size
585 KB
05 October 2020
Product Datasheet

s100N, s130N Datasheet

Categories
File Type
zip
File Size
846 KB
05 October 2020
Product Datasheet

s130N Datasheet

Categories
File Type
pdf
File Size
619 KB
05 October 2020
Product Datasheet

s6HD Datasheet

Categories
TVRO
File Type
pdf
File Size
1632 KB
05 October 2020
Product Datasheet

s80HD Datasheet

Categories
TVRO
File Type
pdf
File Size
1067 KB
05 October 2020
Product Datasheet

t100N Datasheet

Categories
File Type
pdf
File Size
430 KB
05 October 2020
Product Datasheet

t100N Datasheet - Korean Version

Categories
File Type
pdf
File Size
466 KB
05 October 2020
Product Datasheet

t100Q Datasheet

Categories
TVRO
File Type
pdf
File Size
8024 KB
05 October 2020
Product Datasheet

t100W Datasheet

Categories
TVRO
File Type
pdf
File Size
951 KB
05 October 2020
Product Datasheet

t110Q Datasheet

Categories
TVRO
File Type
pdf
File Size
7967 KB
05 October 2020
Product Datasheet

t110W Datasheet

Categories
TVRO
File Type
pdf
File Size
1274 KB
05 October 2020
Product Datasheet

t130N Datasheet

Categories
File Type
pdf
File Size
443 KB
05 October 2020
Product Datasheet

t130N Datasheet - Korean Version

Categories
File Type
pdf
File Size
452 KB
05 October 2020
Product Datasheet

t130Q Datasheet

Categories
TVRO
File Type
pdf
File Size
8220 KB
05 October 2020
Product Datasheet

t130W Datasheet

Categories
TVRO
File Type
pdf
File Size
1455 KB
05 October 2020
Product Datasheet

t150N Datasheet

Categories
File Type
pdf
File Size
462 KB
05 October 2020
Product Datasheet

t150N Datasheet - Korean Version

Categories
File Type
pdf
File Size
480 KB
05 October 2020
Product Datasheet

t240CK Datasheet

Categories
TVRO
File Type
pdf
File Size
1265 KB
05 October 2020
Product Datasheet

t80Q Datasheet

Categories
TVRO
File Type
pdf
File Size
8013 KB
05 October 2020
Product Datasheet

t80W Datasheet

Categories
TVRO
File Type
pdf
File Size
759 KB
05 October 2020
Product Datasheet

t85N Datasheet

Categories
File Type
pdf
File Size
418 KB
05 October 2020
Product Datasheet

t85N Datasheet - Korean Version

Categories
File Type
pdf
File Size
461 KB
05 October 2020
Product Datasheet

t85N,t100N,t130N Datasheet

Categories
File Type
zip
File Size
868 KB
05 October 2020
Product Datasheet

t85N,t100N,t130N,t150N Datasheet

Categories
File Type
zip
File Size
1192 KB
05 October 2020
Product Datasheet

v100 Datasheet

Categories
VSAT
File Type
pdf
File Size
784 KB
05 October 2020
Product Datasheet

v100E Datasheet

Categories
File Type
pdf
File Size
1396 KB
05 October 2020
Product Datasheet

v100GX Datasheet

Categories
VSAT
File Type
pdf
File Size
806 KB
05 October 2020
Product Datasheet

v100GX Datasheet - Chinese Version

Categories
VSAT
File Type
pdf
File Size
805 KB
05 October 2020
Product Datasheet

v100Ka Datasheet

Categories
VSAT
File Type
pdf
File Size
594 KB
05 October 2020
Product Datasheet

v100NX Datasheet

Categories
VSAT
File Type
pdf
File Size
540 KB
05 October 2020
Product Datasheet

v100NX Datasheet - Chinese Version

Categories
VSAT
File Type
pdf
File Size
1072 KB
05 October 2020
Product Datasheet

v100NX Datasheet - Japanese Version

Categories
File Type
pdf
File Size
669 KB
05 October 2020
Product Datasheet

v100NX Datasheet - Korean Version

Categories
File Type
pdf
File Size
570 KB
05 October 2020
Product Datasheet

v100NX Datasheet - Portuguese Version

Categories
File Type
pdf
File Size
543 KB
05 October 2020
Product Datasheet

v100NX Ka Datasheet

Categories
VSAT
File Type
pdf
File Size
545 KB
05 October 2020
Product Datasheet

v100NX Ka XCVR Datasheet

Categories
File Type
pdf
File Size
388 KB
05 October 2020
Product Datasheet

v100PM Datasheet

Categories
VSAT
File Type
pdf
File Size
1271 KB
05 October 2020
Product Datasheet

v130 Datasheet

Categories
VSAT
File Type
pdf
File Size
404 KB
05 October 2020
Product Datasheet

v130G Datasheet

Categories
VSAT
File Type
pdf
File Size
317 KB
05 October 2020
Product Datasheet

v130G Datasheet - Chinese Version

Categories
VSAT
File Type
pdf
File Size
451 KB
05 October 2020
Product Datasheet

v130NX Datasheet

Categories
VSAT
File Type
pdf
File Size
420 KB
05 October 2020
Product Datasheet

v150NX Datasheet

Categories
VSAT
File Type
pdf
File Size
562 KB
05 October 2020
Product Datasheet

v150NX Ka Datasheet

Categories
VSAT
File Type
pdf
File Size
452 KB
05 October 2020
Product Datasheet

v240C Datasheet

Categories
VSAT
File Type
pdf
File Size
651 KB
05 October 2020
Product Datasheet

v240K Datasheet

Categories
VSAT
File Type
pdf
File Size
644 KB
05 October 2020
Product Datasheet

v240M 2 Datasheet

Categories
VSAT
File Type
pdf
File Size
652 KB
05 October 2020
Product Datasheet

v240M 2 Datasheet - Portuguese Version

Categories
File Type
pdf
File Size
657 KB
05 October 2020
Product Datasheet

v240MT 2 Datasheet - Portuguese Version

Categories
File Type
pdf
File Size
470 KB
05 October 2020
Product Datasheet

v240MT Datasheet

Categories
VSAT
File Type
pdf
File Size
462 KB
05 October 2020
Product Datasheet

v240MT Tri-band (C/Ku/Ka) Datasheet

Categories
VSAT
File Type
pdf
File Size
331 KB
05 October 2020
Product Datasheet

v45C Datasheet

Categories
VSAT
File Type
pdf
File Size
491 KB
05 October 2020
Product Datasheet

v45C Datasheet - Korean Version

Categories
File Type
pdf
File Size
412 KB
05 October 2020
Product Datasheet

v60 Datasheet

Categories
VSAT
File Type
pdf
File Size
885 KB
05 October 2020
Product Datasheet

v60E Datasheet

Categories
VSAT
File Type
pdf
File Size
404 KB
05 October 2020
Product Datasheet

v60E Datasheet - Chinese Version

Categories
File Type
pdf
File Size
637 KB
05 October 2020
Product Datasheet

v60E Datasheet - Japanese Version

Categories
File Type
pdf
File Size
636 KB
05 October 2020
Product Datasheet

v60G Datasheet

Categories
VSAT
File Type
pdf
File Size
329 KB
05 October 2020
Product Datasheet

v60Ka 2 Datasheet

Categories
VSAT
File Type
pdf
File Size
533 KB
05 October 2020
Product Datasheet

v60Ka 2 XCVR Datasheet

Categories
File Type
pdf
File Size
408 KB
05 October 2020
Product Datasheet

v60Ka Datasheet

Categories
TVRO
File Type
pdf
File Size
1297 KB
05 October 2020
Product Datasheet

v65 Datasheet

Categories
VSAT
File Type
pdf
File Size
1219 KB
05 October 2020
Product Datasheet

v80G Datasheet

Categories
VSAT
File Type
pdf
File Size
409 KB
05 October 2020
Product Datasheet

v85NX Datasheet

Categories
VSAT
File Type
pdf
File Size
506 KB
05 October 2020
Product Datasheet

v85NX Datasheet - Chinese Version

Categories
File Type
pdf
File Size
742 KB
05 October 2020
Product Datasheet

v85NX Datasheet - Japanese Version

Categories
File Type
pdf
File Size
655 KB
05 October 2020
Product Datasheet

v85NX Ka Datasheet

Categories
VSAT
File Type
pdf
File Size
526 KB
05 October 2020
Product Datasheet

v85NX Ka XCVR Datasheet

Categories
File Type
pdf
File Size
420 KB
05 October 2020
Product Datasheet

VSAT Modem Mediator Datasheet

Categories
VSAT
File Type
pdf
File Size
7151 KB
05 October 2020
Product Datasheet

WorldView LNB Datasheet

Categories
VSAT
File Type
pdf
File Size
100 KB
05 October 2020
Product Datasheet

X130D PM_Datasheet

Categories
File Type
pdf
File Size
506 KB
05 October 2020
Product Datasheet

X150D Datasheet

Categories
File Type
pdf
File Size
798 KB
05 October 2020
Product Images

C200L Product Images

Categories
File Type
zip
File Size
6507 KB
05 October 2020
Product Images

C200M Product Images

Categories
File Type
zip
File Size
6991 KB
05 October 2020
Product Images

C700 Product Image

Categories
VSAT
File Type
png
File Size
400 KB
05 October 2020
Product Images

Dual VSAT Mediator Product Image

Categories
Others
File Type
png
File Size
228 KB
05 October 2020
Product Images

FB250 / 250R Product Images

Categories
Others
File Type
zip
File Size
2450 KB
05 October 2020
Product Images

FB250 Product Images

Categories
VSAT
File Type
zip
File Size
33994 KB
05 October 2020
Product Images

FB500

Categories
File Type
zip
File Size
1924 KB
05 October 2020
Product Images

GX Upgrade kit Product Image

Categories
VSAT, Spares / Accessories
File Type
zip
File Size
3394 KB
05 October 2020
Product Images

GX100NX HP Product Images

Categories
VSAT
File Type
zip
File Size
4824 KB
05 October 2020
Product Images

GX100NX Product Images

Categories
VSAT
File Type
zip
File Size
6854 KB
05 October 2020
Product Images

GX100PM Product Image

Categories
VSAT
File Type
zip
File Size
3099 KB
05 October 2020
Product Images

GX100PM Product Images

Categories
VSAT
File Type
zip
File Size
1088 KB
05 October 2020
Product Images

GX60NX HP Product Images

Categories
VSAT
File Type
zip
File Size
4921 KB
05 October 2020
Product Images

GX60NX Product Images

Categories
VSAT
File Type
zip
File Size
6097 KB
05 October 2020
Product Images

i2 Product Images

Categories
TVRO
File Type
zip
File Size
1196 KB
05 October 2020
Product Images

i3 Product Images

Categories
TVRO
File Type
zip
File Size
1058 KB
05 October 2020
Product Images

i4 Product Images

Categories
TVRO
File Type
zip
File Size
983 KB
05 October 2020
Product Images

i5 Product Images

Categories
TVRO
File Type
zip
File Size
1067 KB
05 October 2020
Product Images

i5P Product Images

Categories
TVRO
File Type
zip
File Size
1258 KB
05 October 2020
Product Images

i6 Product Images

Categories
TVRO
File Type
zip
File Size
1067 KB
05 October 2020
Product Images

i9 Product Images

Categories
TVRO
File Type
zip
File Size
1270 KB
05 October 2020
Product Images

LP100 Product Image

Categories
Others
File Type
zip
File Size
4388 KB
05 October 2020
Product Images

Mediator Product Image

Categories
Others
File Type
zip
File Size
11904 KB
05 October 2020
Product Images

New t-Series Images

Categories
File Type
zip
File Size
15669 KB
05 October 2020
Product Images

OW50M Product Images

Categories
File Type
zip
File Size
11809 KB
05 October 2020
Product Images

OW70M Product Images

Categories
File Type
zip
File Size
10250 KB
05 October 2020
Product Images

s100HD Product Image

Categories
TVRO
File Type
zip
File Size
1235 KB
05 October 2020
Product Images

s100N Product Images

Categories
File Type
zip
File Size
66205 KB
05 October 2020
Product Images

s100N, s130N Product Images

Categories
File Type
zip
File Size
134587 KB
05 October 2020
Product Images

s130N Product Images

Categories
File Type
zip
File Size
68349 KB
05 October 2020
Product Images

s6HD Product Images

Categories
TVRO
File Type
zip
File Size
934 KB
05 October 2020
Product Images

s80HD Product Images

Categories
TVRO
File Type
zip
File Size
1178 KB
05 October 2020
Product Images

t100N Product Images

Categories
File Type
zip
File Size
4110 KB
05 October 2020
Product Images

t100W Product Images

Categories
TVRO
File Type
zip
File Size
1927 KB
05 October 2020
Product Images

t130N Product Images

Categories
File Type
zip
File Size
3585 KB
05 October 2020
Product Images

t130W Product Images

Categories
TVRO
File Type
zip
File Size
1409 KB
05 October 2020
Product Images

t150N Product Images

Categories
File Type
zip
File Size
4109 KB
05 October 2020
Product Images

t240CK Product Images

Categories
TVRO
File Type
zip
File Size
1620 KB
05 October 2020
Product Images

t80Q,W Product Images

Categories
TVRO
File Type
zip
File Size
1675 KB
05 October 2020
Product Images

t80W Product Images

Categories
TVRO
File Type
zip
File Size
1675 KB
05 October 2020
Product Images

t85N Product Images

Categories
File Type
zip
File Size
3863 KB
05 October 2020
Product Images

TVRO FiberLink Product Image

Categories
Spares / Accessories
File Type
png
File Size
5836 KB
05 October 2020
Product Images

v100GX Product Images

Categories
VSAT
File Type
zip
File Size
1790 KB
05 October 2020
Product Images

v100Ka Product Image

Categories
VSAT
File Type
zip
File Size
2089 KB
05 October 2020
Product Images

v100Ka Upgrade kit Product Image

Categories
VSAT, Spares / Accessories
File Type
zip
File Size
3394 KB
05 October 2020
Product Images

v100NX Ka Product Images

Categories
VSAT
File Type
zip
File Size
4574 KB
05 October 2020
Product Images

v100NX Ka XCVR Product Images

Categories
File Type
zip
File Size
3367 KB
05 October 2020
Product Images

v100NX Product Images

Categories
VSAT
File Type
zip
File Size
4790 KB
05 October 2020
Product Images

v100PM Product Image

Categories
VSAT
File Type
zip
File Size
2647 KB
05 October 2020
Product Images

v100PM Upgrade kit Product Image

Categories
VSAT, Spares / Accessories
File Type
zip
File Size
3405 KB
05 October 2020
Product Images

v130NX Product Images

Categories
VSAT
File Type
zip
File Size
3748 KB
05 October 2020
Product Images

v150NX Ka Product Images

Categories
VSAT
File Type
zip
File Size
4592 KB
05 October 2020
Product Images

v150NX Product Images

Categories
VSAT
File Type
zip
File Size
4716 KB
05 October 2020
Product Images

v150NX Product Images

Categories
VSAT
File Type
zip
File Size
11252 KB
05 October 2020
Product Images

v240C Product Images

Categories
VSAT
File Type
zip
File Size
6709 KB
05 October 2020
Product Images

v240K Product Images

Categories
VSAT
File Type
zip
File Size
7497 KB
05 October 2020
Product Images

v240M Product Images

Categories
VSAT
File Type
zip
File Size
36588 KB
05 October 2020
Product Images

v240MT Product Images

Categories
VSAT
File Type
zip
File Size
9652 KB
05 October 2020
Product Images

v45C Product Images

Categories
File Type
zip
File Size
856 KB
05 October 2020
Product Images

v45C_Product Image_Pedestal

Categories
File Type
png
File Size
358 KB
05 October 2020
Product Images

v45C_Product image_Radome

Categories
File Type
png
File Size
180 KB
05 October 2020
Product Images

v45C_Product Image_Set

Categories
File Type
png
File Size
359 KB
05 October 2020
Product Images

v60E Product Images

Categories
VSAT
File Type
zip
File Size
5240 KB
05 October 2020
Product Images

v60Ka Product Image

Categories
VSAT
File Type
zip
File Size
5078 KB
05 October 2020
Product Images

v65 Upgrade kit Product Image

Categories
VSAT, Spares / Accessories
File Type
zip
File Size
3288 KB
05 October 2020
Product Images

v85NX Ka Product Images

Categories
VSAT
File Type
zip
File Size
7321 KB
05 October 2020
Product Images

v85NX Product Images

Categories
VSAT
File Type
zip
File Size
4288 KB
05 October 2020
Product Images

VSAT FiberLink Product Image

Categories
Spares / Accessories
File Type
png
File Size
5836 KB
05 October 2020
Product Images

X100D Product Images

Categories
File Type
zip
File Size
228 KB
05 October 2020
Product Images

X130D PM Product Images

Categories
File Type
zip
File Size
10937 KB
05 October 2020
No Results Found
Previous page
Next page
