Satellite TV Onboard Entertainment

Overview

Compact and Powerful Marine Satellite TV Antenna Systems

Intellian’s i-Series antennas provide outstanding TV reception for boats as small as 7 meters (20ft) all the way up to the most luxurious yachts. Only Intellian offers exclusive - and patented – technologies that make watching TV onboard easier and more enjoyable than you ever imagined.



CHOOSE YOUR REGION
Change region

Antenna selector

DIRECTV (North America) 1
DIRECTV (North America) 2
DIRECTV (North America) 3
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100/s100HD
42 dBW
85cm (33.5")
i9P/i9W/t80
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W/s80HD
46 dBW

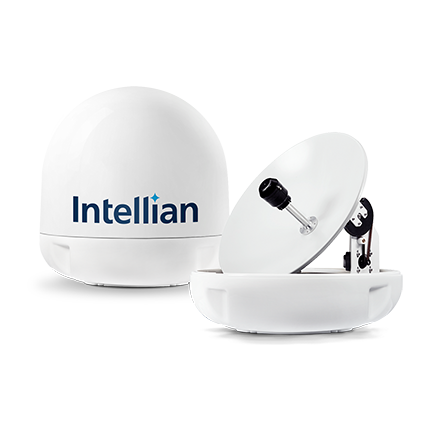

53cm (21")
i5/s6HD
47 dBW

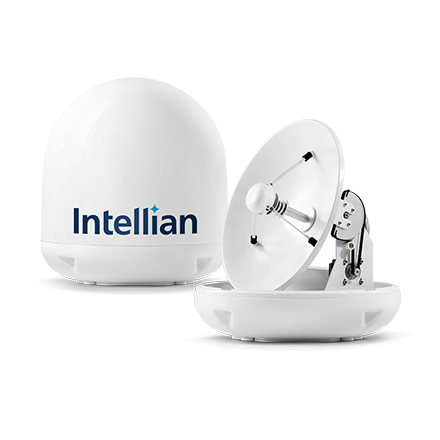

45cm (17.7")
i4/i4P
48 dBW

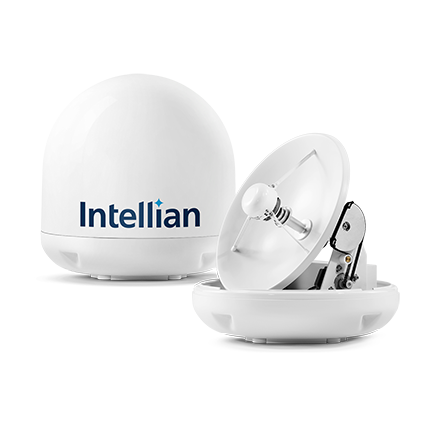

37cm (14.6")
i3
50 dBW

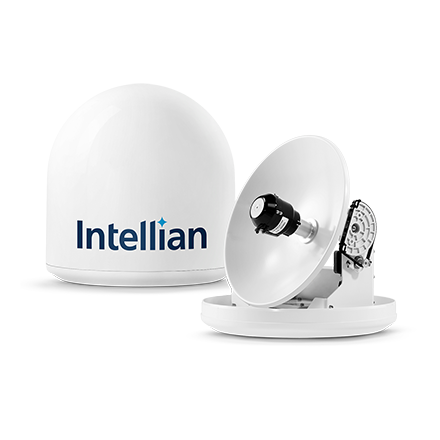

33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t130
Intellian Recommends t100/s100HD
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W/s80HD
Intellian Recommends i5/s6HD
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Intellian Recommends t130
Intellian Recommends t100/s100HD
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W/s80HD
Intellian Recommends i5/s6HD
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Intellian Recommends t130
Intellian Recommends t100/s100HD
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W/s80HD
Intellian Recommends i5/s6HD
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
DIRECTV KA-Band (North America)
Americas
Key
Antenna dish size
Product
EIRP
105cm (41.3")
s100HD
43 dBW
60cm (23.6")
s80HD
45 dBW
53cm (21")
s6HD
47 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends s100HD
Intellian Recommends s80HD
Intellian Recommends s6HD
DishNetwork 1 (North America)
DishNetwork 2 (North America)
DishNetwork 3 (North America)
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100
42 dBW
85cm (33.5")
i9P/i9W/t80
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53cm (21")
i5
47 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t130
Intellian Recommends t100
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Intellian Recommends t130
Intellian Recommends t100
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Intellian Recommends t130
Intellian Recommends t100
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
DIRECTV (Latin America)
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100/t110
42 dBW
85cm (33.5")
i9P/i9W
44 dBW
60cm (23.6)
i6/i6P/i6PE/i6W
46 dBW
53cm (21")
i5
47 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t30
Intellian Recommends t100/t110
Intellian Recommends i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Dish 77W satellite (North America)
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100
42 dBW
85cm (33.5")
i9P/i9W/t80
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53cm (21")
i5
47 dBW
45cm (17.7")
i4/i4P
48 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t130
Intellian Recommends t100
Intellian Recommends i9P/i9W/t80
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
BellTV(Canada)
Americas
Key
Antenna dish size
Product
EIRP
85cm (33.5")
i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53cm (21")
i5
47 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Brazil Claro
Americas
Key
Antenna dish size
Product
EIRP
85cm (33.5")
i9P/i9W
44 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends i9P/i9W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Sky Brazil
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100/t110
42 dBW
85cm (33.5")
i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t130
Intellian Recommends t100/t110
Intellian Recommends i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Sky Mexico
Americas
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130
40 dBW
105cm (41.3")
t100/t110
42 dBW
85cm (33.5")
i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

America
Intellian Recommends t130
Intellian Recommends t100/t110
Intellian Recommends i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Hispasat
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53 cm (21")
i5
47 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Astra 1KR
Europe & Middle East
Key
Antenna dish size
Product
EIRP
125 cm (49.2")
t130W/t130Q
40 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t130W/t130Q
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Astra 2E 2F 2G
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
37 cm (14.6")
i3
50 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i3
Astra 2E 2F 2G UK
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53 cm (21")
i5
47 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i3
Intellian Recommends i2
Thor 5
Europe & Middle East
Key
Antenna dish size
Product
EIRP
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i3
Intellian Recommends i2
Astra 3B
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
I6/i6P/i6PE/i6W
46 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends I6/i6P/i6PE/i6W
Astra 4A
Europe & Middle East
Key
Antenna dish size
Product
EIRP
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Badr 6 - Eutelsat 26E
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
I6/i6P/i6PE/i6W
46 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends I6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Eutelsat 7W
Europe & Middle East
Key
Antenna dish size
Product
EIRP
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
I6/i6P/i6PE/i6W
46 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends I6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Eutelsat 7C (West)
Europe & Middle East
Key
Antenna dish size
Product
EIRP
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
I6/i6P/i6PE/i6W
46 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends I6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Eutelsat 16A
Europe & Middle East
Key
Antenna dish size
Product
EIRP
125 cm (49.2")
t130W/t130Q
40 dBW
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53 cm (21")
i5
47 dBW
45 cm (17.7")
i4/i4P
48 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t130W/t130Q
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Hotbird 13B
Europe & Middle East
Key
Antenna dish size
Product
EIRP
125 cm (49.2")
t130W/t130Q
40 dBW
105 cm (41.3")
t100W/t100Q/s100HD
42 dBW
85 cm (33.5")
t80W/t80Q/i9P/i9W
44 dBW
60 cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
53 cm (21")
i5
47 dBW
45 cm (17.7")
i4/i4P
48 dBW
37 cm (14.6")
i3
50 dBW
33 cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Europe & Middle East
Intellian Recommends t130W/t130Q
Intellian Recommends t100W/t100Q/s100HD
Intellian Recommends t80W/t80Q/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i5
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Optus C1
Asia & Oceania
Key
Antenna dish size
Product
EIRP
240cm (94.0")
t240CK
35 dBW
125cm (49.2")
t130W
40 dBW
105cm (41.3")
t100W/s100HD
42 dBW
85cm (33.5")
t80W/i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends t240CK
Intellian Recommends t130W
Intellian Recommends t100W/s100HD
Intellian Recommends t80W/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Optus D1
Asia & Oceania
Key
Antenna dish size
Product
EIRP
105cm (41.3")
t100W/t110HD
42 dBW
85cm (33.5")
t80W/i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends t100W/t110HD
Intellian Recommends t80W/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Koreasat 6
Asia & Oceania
Key
Antenna dish size
Product
EIRP
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Telstar 18
Asia & Oceania
Key
Antenna dish size
Product
EIRP
85cm (33.5")
t80W/i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends t80W/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Chinasat 9
Asia & Oceania
Key
Antenna dish size
Product
EIRP
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Measat 3B
Asia & Oceania
Key
Antenna dish size
Product
EIRP
125cm (49.2")
t130W
40 dBW
85cm (33.5")
t80W/i9P/i9W
44 dBW
60cm (23.6")
i6/i6P/i6PE/i6W
46 dBW
45cm (17.7")
i4/i4P
48 dBW
37cm (14.6")
i3
50 dBW
33cm (13.0")
i2
51 dBW

Note: The coverage maps are intended for information purposes only. The actual coverage and minimun EIRP level can be variable upon weather conditions. Intellian makes no warranties as to the coverage area in this document and the information can be changed without notice.

Asia & Oceania
Intellian Recommends t130W
Intellian Recommends t80W/i9P/i9W
Intellian Recommends i6/i6P/i6PE/i6W
Intellian Recommends i4/i4P
Intellian Recommends i3
Intellian Recommends i2
Image Gallery
Compare Products

Category

i2

i3

i4

i5

i6

i9

i2

i3

i4

i5

i6

i9

i2

i3

i4

i5

i6

i9

Radome Dimension (WxH)

37 cm x 38 cm (14.6" x 15")

43 cm x 44 cm (16.9" x 17.3")

50 cm x 54 cm (19.7" x 21.2")

61 cm x 62.7 cm (24" x 24.7")

70 cm x 72 cm (27.5" x 28.3")

113 cm x 121 cm (44.5" x 47.5")

37 cm x 38 cm (14.6" x 15")

43 cm x 44 cm (16.9" x 17.3")

50 cm x 54 cm (19.7" x 21.2")

61 cm x 62.7 cm (24" x 24.7")

70 cm x 72 cm (27.5" x 28.3")

113 cm x 121 cm (44.5" x 47.5")

37 cm x 38 cm (14.6" x 15")

43 cm x 44 cm (16.9" x 17.3")

50 cm x 54 cm (19.7" x 21.2")

61 cm x 62.7 cm (24" x 24.7")

70 cm x 72 cm (27.5" x 28.3")

113 cm x 121 cm (44.5" x 47.5")

Reflector Diameter

33cm (12.99")

37cm (14.56")

45cm (17.7")

53.5cm (21")

60cm (23.6")

85cm (33.5")

33cm (12.99")

37cm (14.56")

45cm (17.7")

53.5cm (21")

60cm (23.6")

85cm (33.5")

33cm (12.99")

37cm (14.56")

45cm (17.7")

53.5cm (21")

60cm (23.6")

85cm (33.5")

Antenna Weight

4.5 kg (9.5 lbs)

9 kg (19.8 lbs)

11.6 kg (25.5 lbs)

17.3 kg (38 lbs)

20 kg (44 lbs)

56.2 kg (123.90 Ibs)

4.5 kg (9.5 lbs)

9 kg (19.8 lbs)

11.6 kg (25.5 lbs)

17.3 kg (38 lbs)

20 kg (44 lbs)

56.2 kg (123.90 Ibs)

4.5 kg (9.5 lbs)

9 kg (19.8 lbs)

11.6 kg (25.5 lbs)

17.3 kg (38 lbs)

20 kg (44 lbs)

56.2 kg (123.90 Ibs)

Min EIRP

51 dBW

50 dBW

48 dBW

47 dBW

46 dBW

44 dBW

51 dBW

50 dBW

48 dBW

47 dBW

46 dBW

44 dBW

51 dBW

50 dBW

48 dBW

47 dBW

46 dBW

44 dBW

Elevation Range

+10˚ to +80˚

+10˚ to +80˚

0˚ to +90˚

0˚ to +90˚

+5˚ to +90˚

+15˚ to +90˚

+10˚ to +80˚

+10˚ to +80˚

0˚ to +90˚

0˚ to +90˚

+5˚ to +90˚

+15˚ to +90˚

+10˚ to +80˚

+10˚ to +80˚

0˚ to +90˚

0˚ to +90˚

+5˚ to +90˚

+15˚ to +90˚

Polarization

Linear or Circular

Linear or Circular

Linear or Circular

Linear or Circular

"Linear or Circular i6W: Linear and Circular"

Linear and Circular

Linear or Circular

Linear or Circular

Linear or Circular

Linear or Circular

"Linear or Circular i6W: Linear and Circular"

Linear and Circular

Linear or Circular

Linear or Circular

Linear or Circular

Linear or Circular

"Linear or Circular i6W: Linear and Circular"

Linear and Circular

Auto Skew

No

No

i4P

i5P

i6P, i6W, i6PE

Yes

No

No

i4P

i5P

i6P, i6W, i6PE

Yes

No

No

i4P

i5P

i6P, i6W, i6PE

Yes

World View Capable

No

No

No

No

i6W

i9W

No

No

No

No

i6W

i9W

No

No

No

No

i6W

i9W
